Removing and Installing/Replacing Power Window Switch (Drivers Side)



61 31 117 Removing And Installing/Replacing Power Window Switch (driver's Side)

Special tools required:







IMPORTANT:
Carry out the following operation carefully so as to avoid damaging the door trim panel and switch.
If necessary, tape off working area.

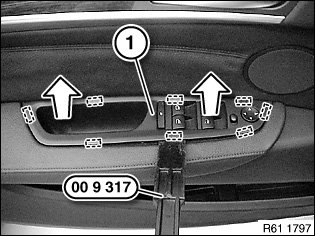

Lever power window switch (1) with special tool 00 9 317 in direction of arrow out of armrest.

Installation:
Make sure power window switch (1) is correctly engaged in armrest.

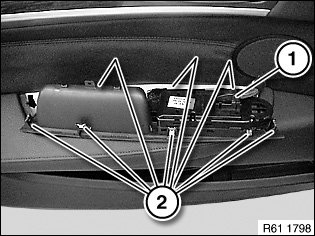

Disconnect plug connection (1) and remove power window switch.

Installation:
Make sure retainers (2) are correctly seated on power window switch.
