52 17 ... Replacing Padding For Front Seat Thigh Support



52 17 ... Replacing Padding For Front Seat Thigh Support







Necessary preliminary tasks:
- Remove thigh support







NOTE:
Picture shows versions with air conditioning and seat heating.

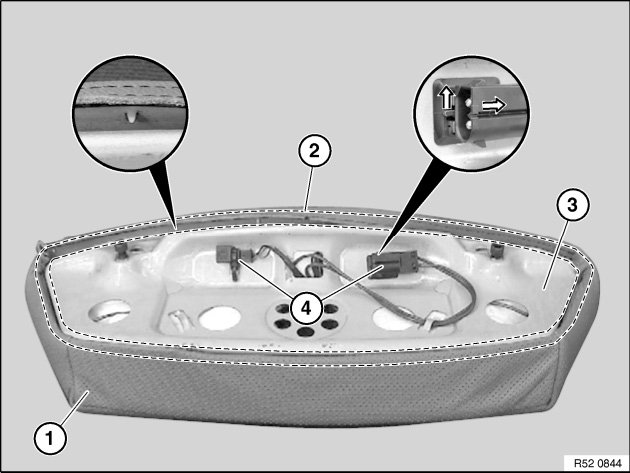

Feed out seat cover (1) in area (2).

Installation:
Seat cover (1) is fastened by hooks in trim (3).
Remove plug connections (4) and feed out through trim (3).

Remove trim (3); if necessary, remove padding or cover.

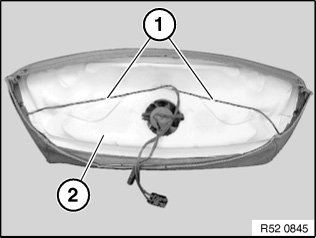

Version with seat heating or air conditioning:
Feed out cable (1) and remove padding (2).

Installation:
Ensure correct cable routing (1).

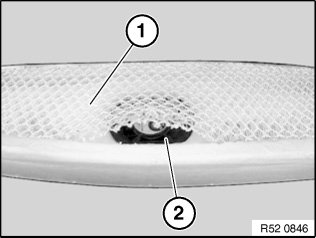

Version with air conditioning:
- Remove separating net (1).
- Lift out fan (2).
