63 13 200 Removing and Installing/Replacing Front Left or Right Auxiliary Turn Indicator

63 13 200 Removing And Installing/replacing Front Left Or Right Auxiliary Direction Indicator







IMPORTANT: Follow instructions for handling light bulbs (exterior lights).

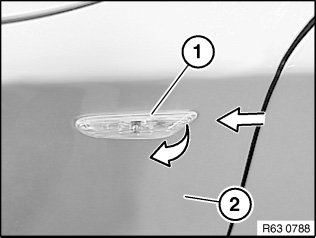

Slide front auxiliary turn signal lamp (1) towards front and fold in direction of arrow out of front side wall (2).

Disconnect associated plug connection and remove front auxiliary direction indicator (1).







Replacement:
If necessary, remove bulb.
