64 11 908 Removing and Installing/Replacing Footwell Temperature Sensor
64 11 908 - Removing and installing/replacing footwell temperature sensor
Necessary preliminary tasks:
- Remove trim panel for pedal assembly 51 45 185 Removing and Installing/Replacing Panel For Pedals.
Note:

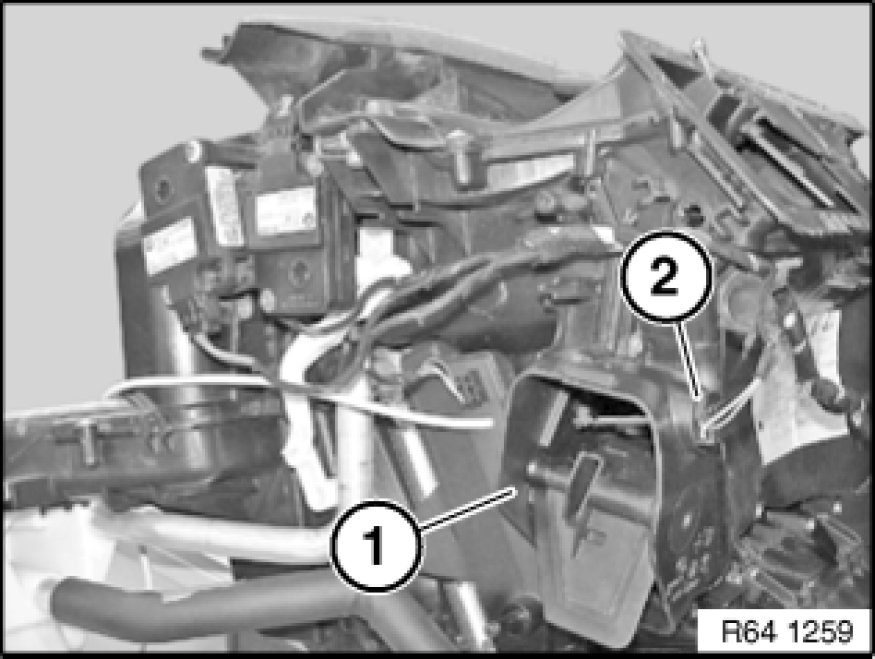

For purposes of clarity, the following graphic shows the heater/air conditioner removed.
Remove air routing duct (1) and unscrew temperature sensor (2).
