Interior - Rattle From Center Of Front Armrest
SI B51 50 10Body Equipment
November 2010
Technical Service
SUBJECT
Rattle from the Front Center Armrest
MODEL
F10 (5 Series) vehicles produced between October 1, 2009 and January 22, 2010
SITUATION
The customer may complain of a rattle noise from the center front armrest. The noise can be heard if weight is applied to the center front armrest by using your arm, or while driving on a rough road.
CAUSE
There is too much play in the rear hinge area of the center front armrest.
PROCEDURE
See attachment B515010.
PARTS INFORMATION
WARRANTY INFORMATION
ATTACHMENTS

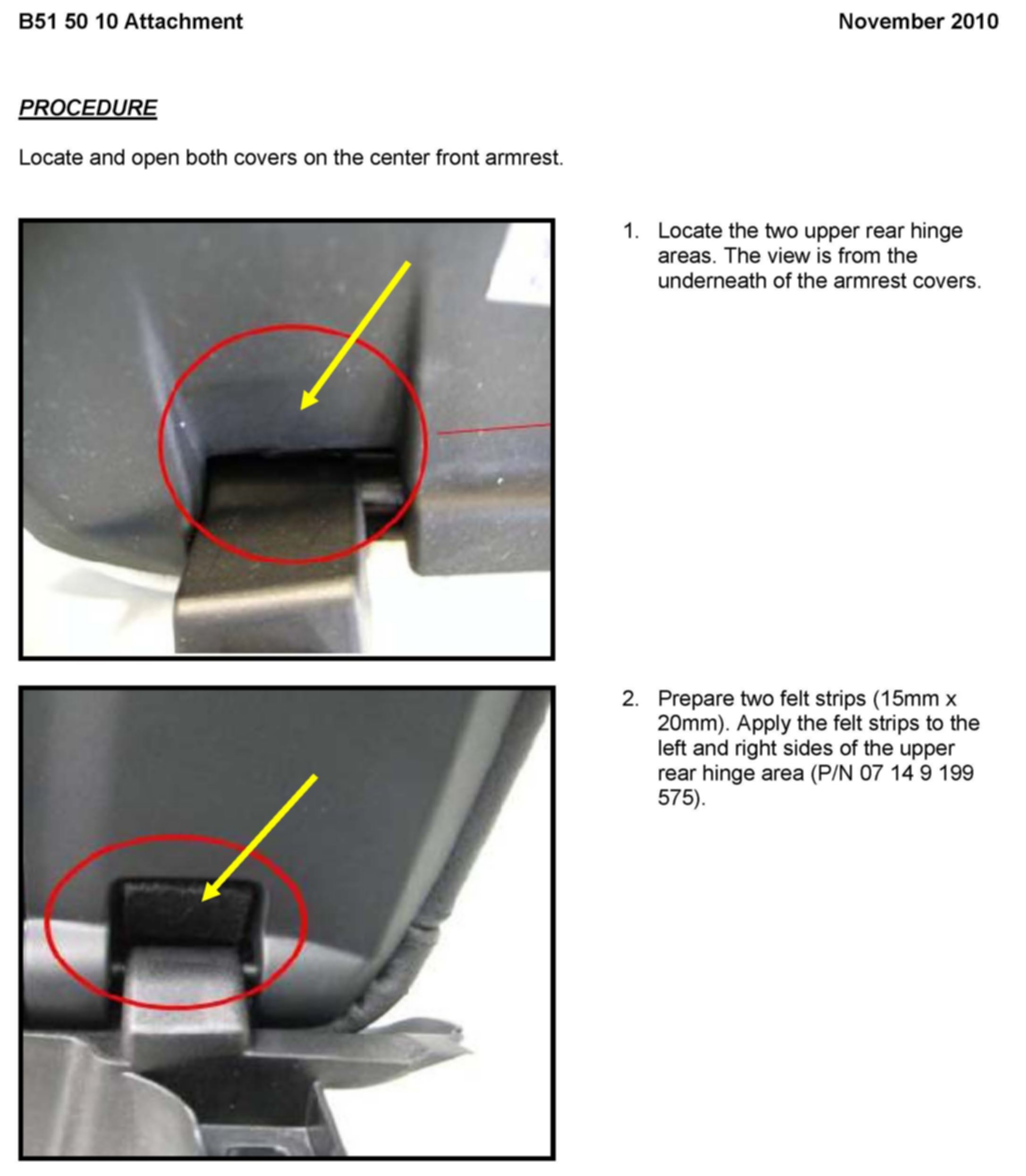

B515010 - PROCEDURE
