27 21 030 Replacing Radial Shaft Seal For Front Axle Output (ATC 350)

27 21 030 Replacing radial shaft seal for front axle output (ATC 350)





Important!
After completion of work, check transmission oil level.
Use only the approved gear oil in this transfer box.





Necessary preliminary work:
^ Remove rear underbody protection.
^ Remove left holder for underbody protection.
^ Remove exhaust system holder from transfer box.

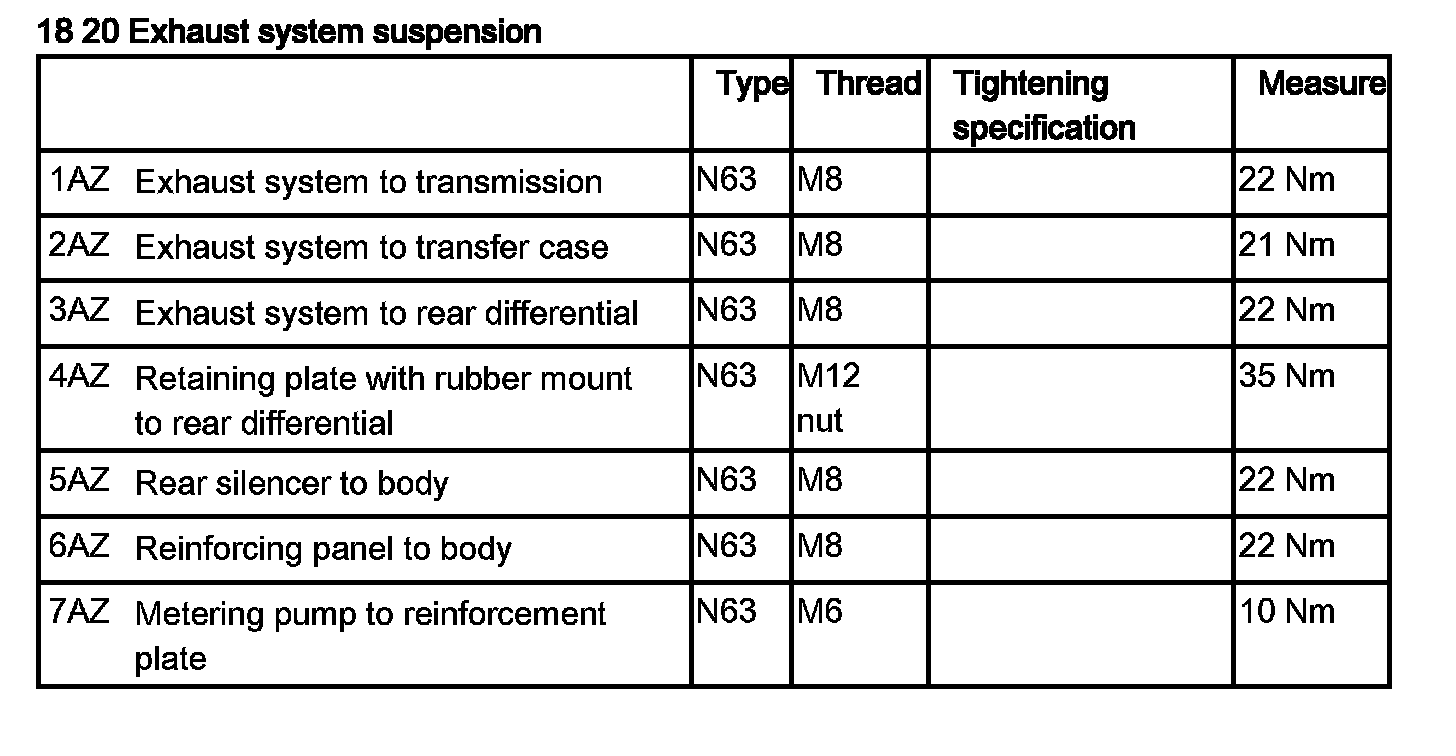

Tightening torque 18 20 2AZ.

Release screws.

Tightening torque, 26 11 7AZ.

Remove front propeller shaft at output flange of transfer box and tie to one side.





Installation note:
Replace screws.





Lever output flange (1) out of housing with screwdriver (2).

Lever radial shaft seal out of housing with a suitable tool.

Important!
Do not damage housing.





Drive in radial shaft seal with special tool 27 1 450.
