Body - Erratic Door Window Operation
SI B51 53 10Body Equipment
December 2010
Technical Service
SUBJECT
Door Side Windows Do Not Close
MODEL
F10 (5 Series)
SITUATION
The door side window can no longer be closed and opens up again (approximately 6 cm) after reaching the end position. The window may not close automatically, or only closes in stages. The CC (check control) message is displayed for no anti-trap mechanism.
The situation occurs very intermittently.
CAUSE
Incorrect impulse value from the Hall sensor
PROCEDURE
If it is no longer possible to close the window, proceed as follows:
1. The door with the faulty window regulator must be closed for initialization and the ignition must be on.
2. Pull and hold the window switch in the full up position~ beyond the pressure point.
3. If the window closes fully, the initialization is complete.
4. If the window reverses, release the window switch after the window has come to a stop, activate the switch again in the closing direction (do not pull the switch beyond the pressure point), and then hold it in that position until there is no more window movement (window closes without anti-trap). If the window is fully closed, continue to hold the switch for at least 3 seconds.
Note:
No parts should be replaced. This is a temporary procedure until a permanent solution has been developed.

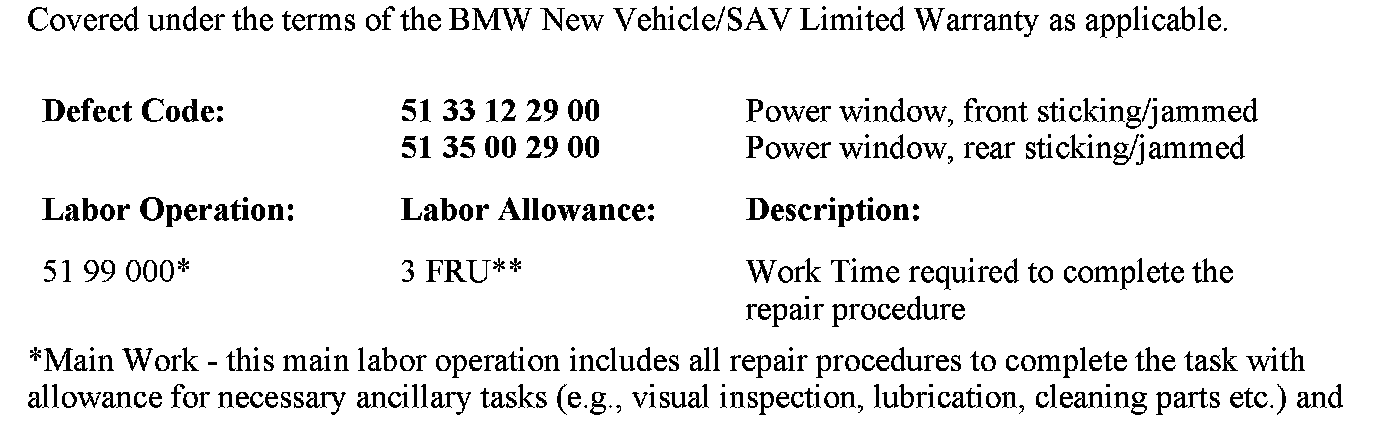

WARRANTY INFORMATION
