66 20 535 Removing and Installing/Replacing Rear Right Ultrasonic Transducer

66 20 535 - Removing and installing/replacing a rear right ultrasonic transducer (Park Distance Control)





Warning!
Scalding hazard!
Work on the exhaust system may only be carried out when it has cooled down!





Note:
Ultrasonic transducers (1) can be removed without the bumper trim being removed.





Release retaining tabs (1).
Pull ultrasonic transducer out of holder and disconnect plug connection (2).





Installation Note:

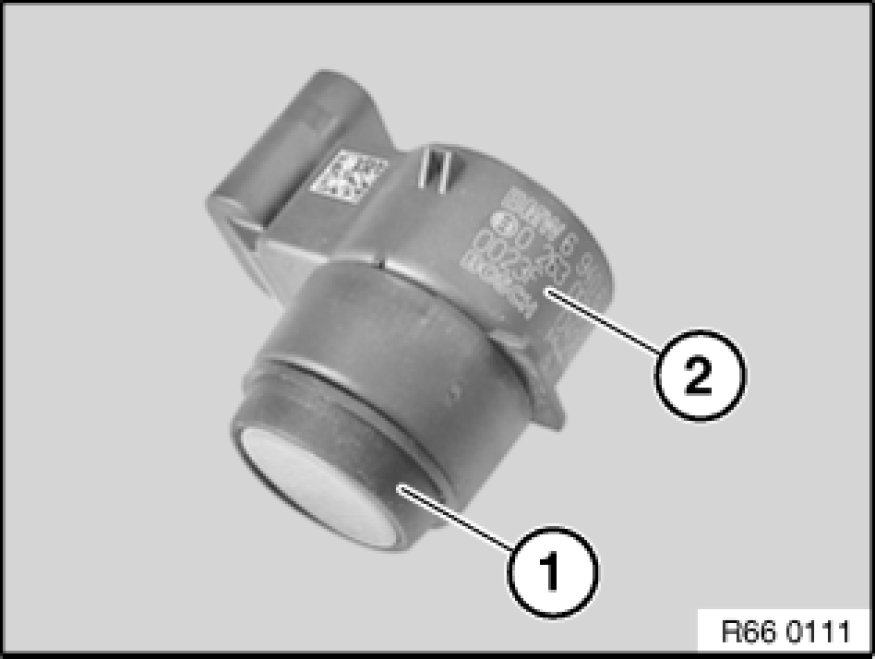

Make sure rubber ring (1) is correctly seated on ultrasonic transducer (2).
