54 13 150 Removing and Installing Rear Cross-Member

54 13 150 - Removing and installing rear cross-member





Necessary preliminary tasks:
- Remove glass slide/tilt sunroof
- Remove drive 67 61 007 Removing and Installing/Replacing Drive with Gear (Rear) for Actuating Slide/Tilt Sunroof (Rear)

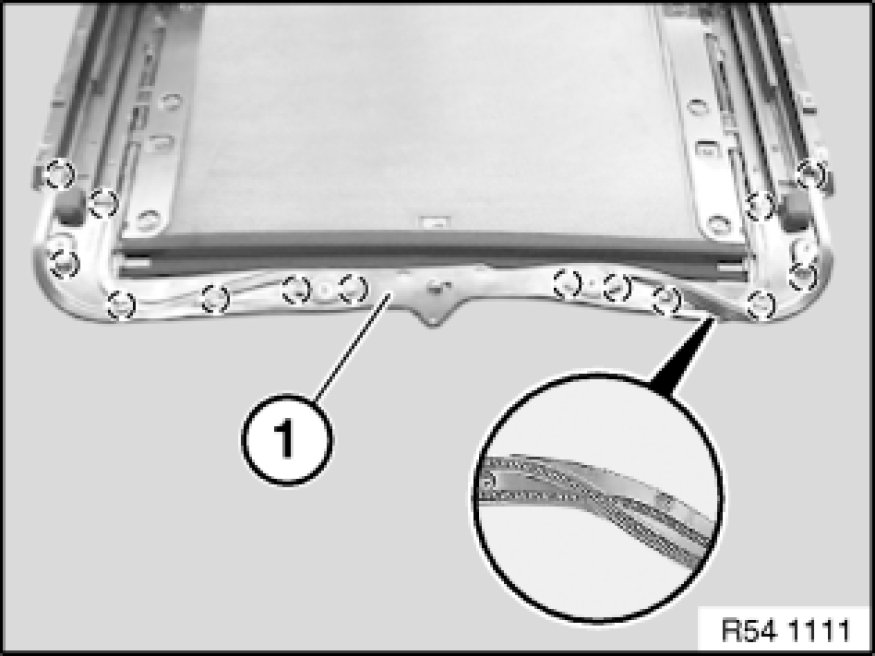

Release screws in marked area.
Tightening torque: 54 12 03AZ 54 12 Mechanical Components, Panorama Sunroof.
Remove cross-member (1).

Installation:
Pitch cables must be correctly laid diagonally in guide.
