Front Glass Mechanism Repair - E53, E61, E70, E83, E91

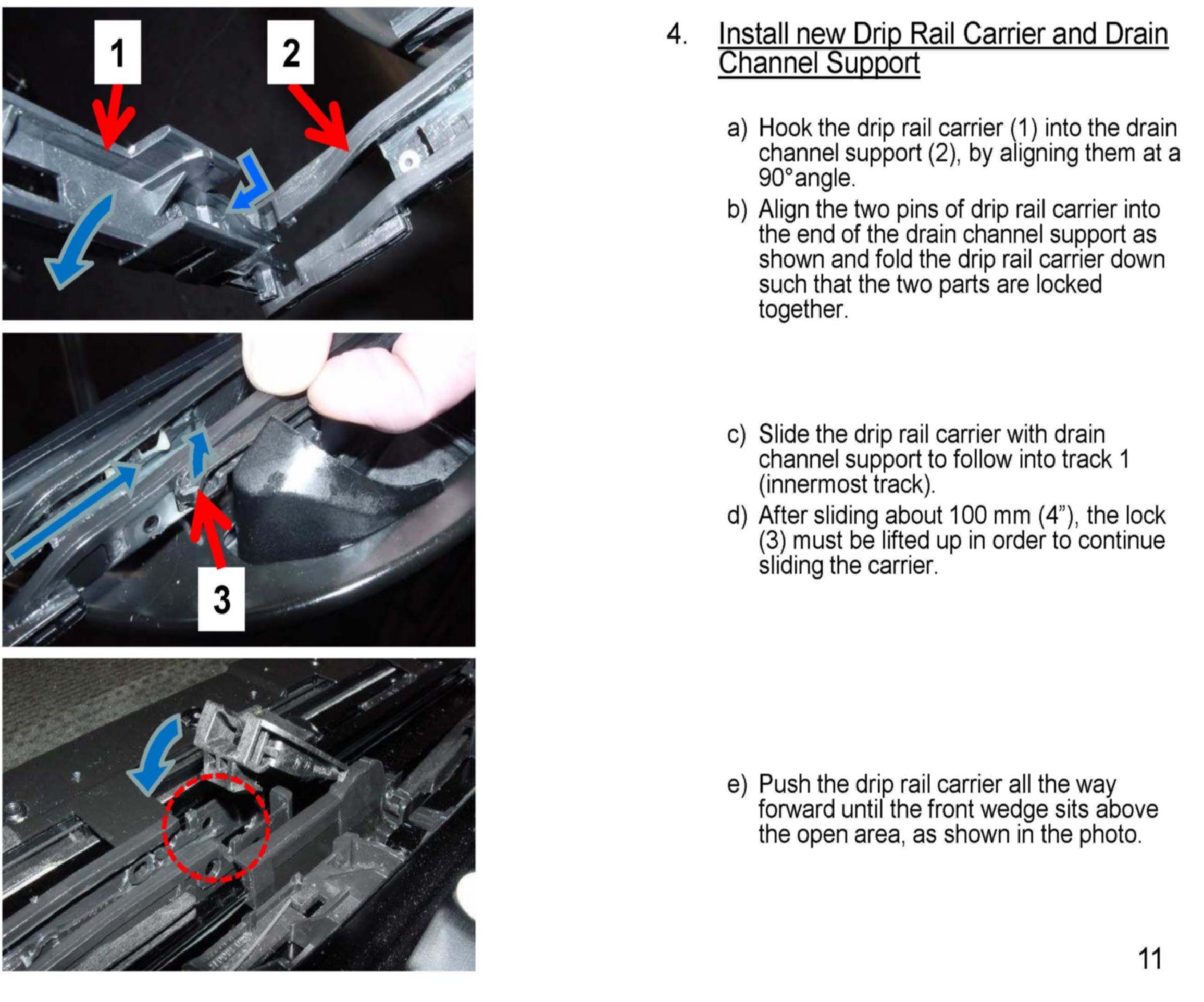

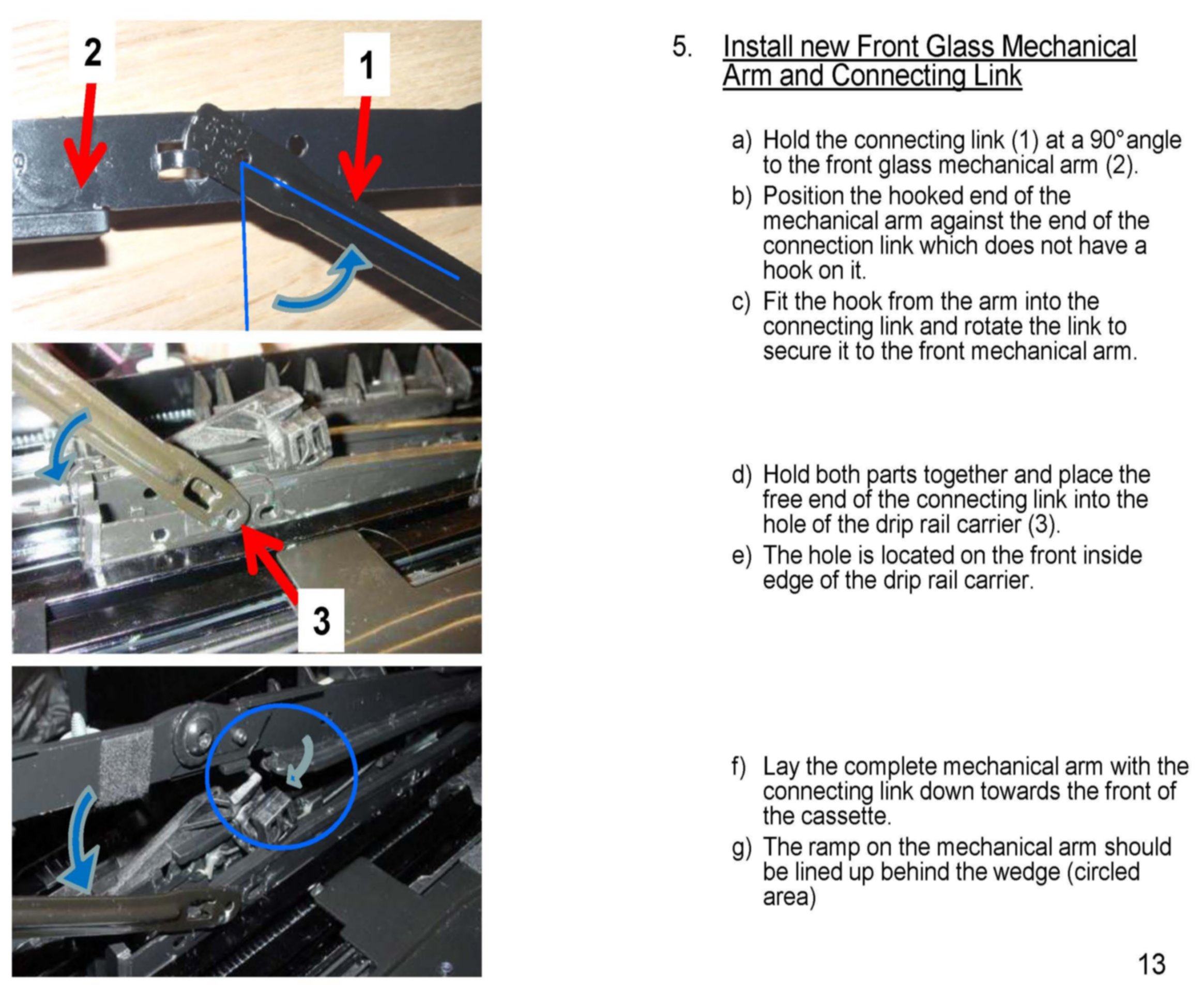

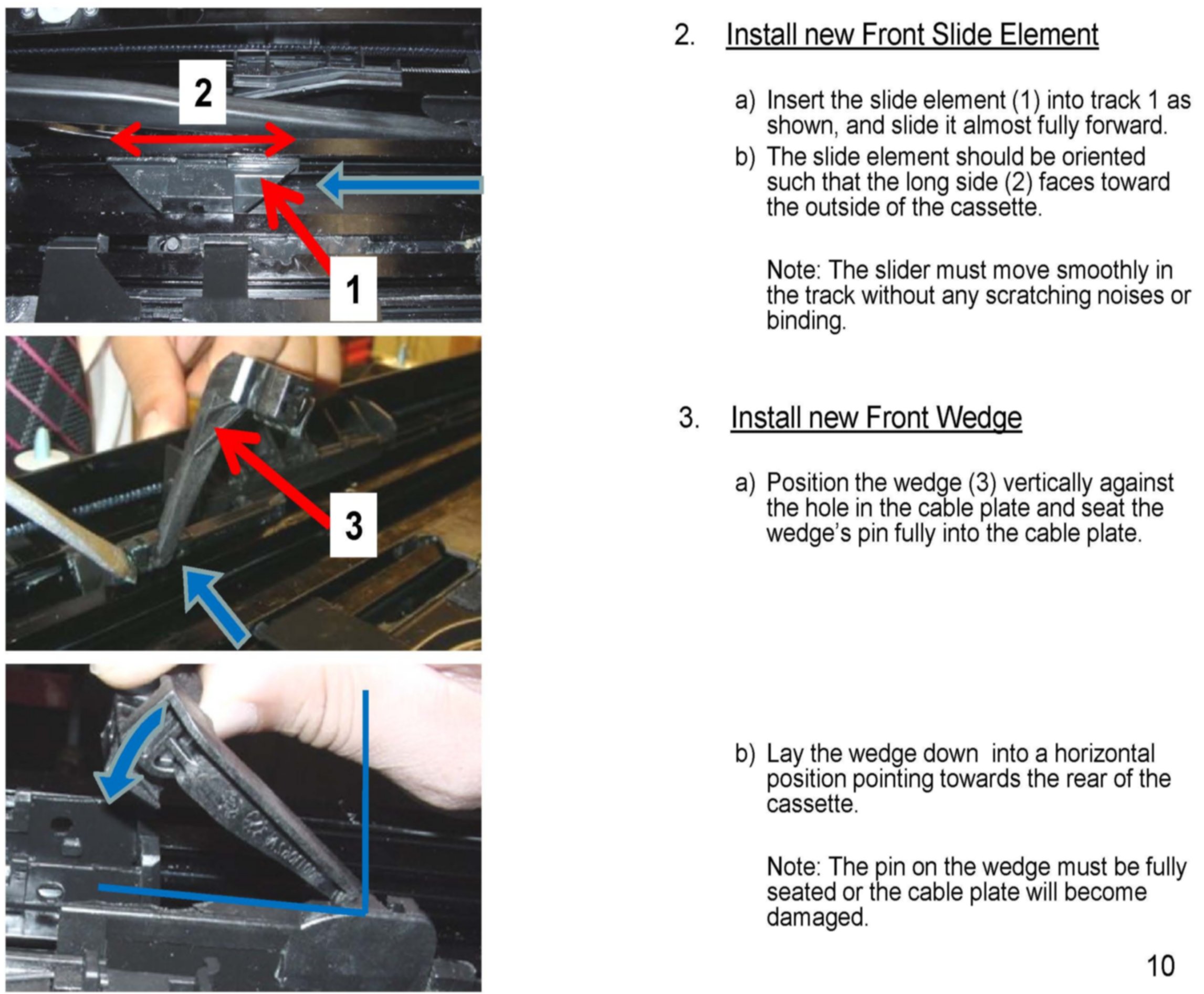

Sunroof Cassette Front Glass Panel Mechanism Replacement
