Middle Fold Trim (60 Percent Rear Seat)

52 26 ... - Removing and installing middle fold trim (60 % rear seat)





Necessary preliminary tasks:
- Remove middle slide trim at top only
- trim for center armrest
- Remove inner follower trim Inner Follower Trim

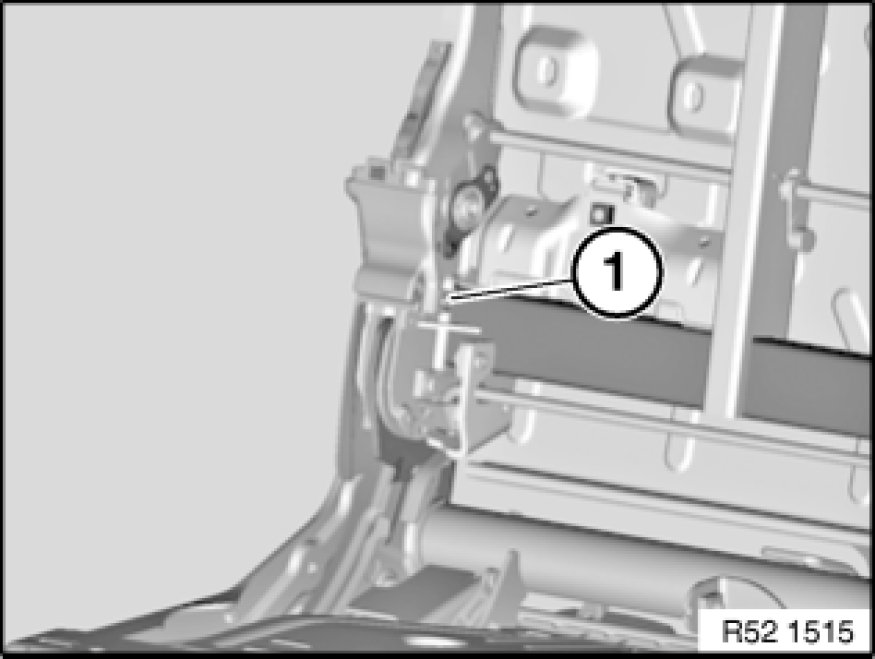

Release screw (1).

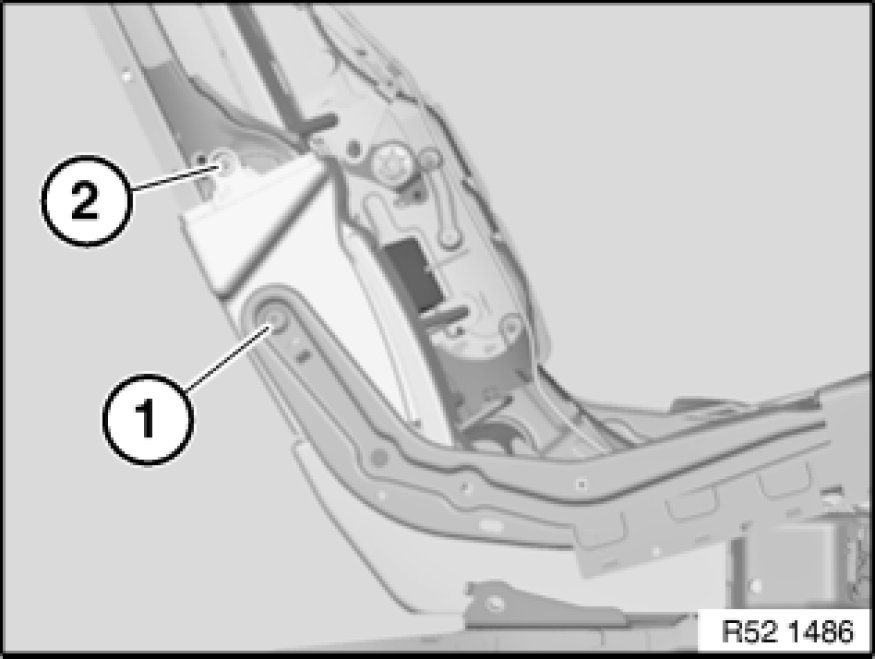

Release screw (1).
Tightening torque: 52 26 27AZ 52 26 Rear Seats (Through-Loading System).
Release screw (2).

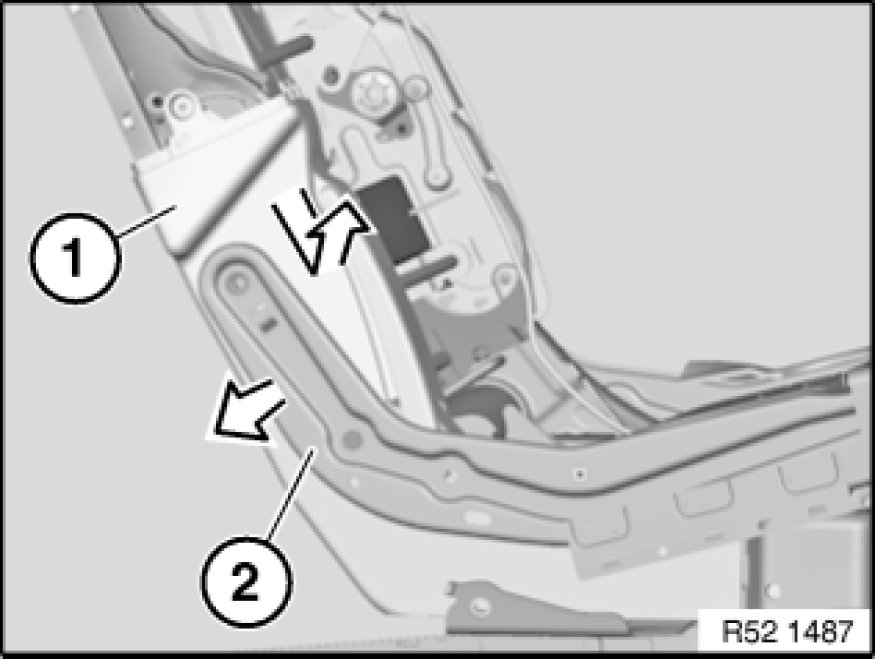

Carefully tighten follower (2) on seat cushion frame.
Remove trim (1) in direction of arrow and feed out of seat mechanism.
