Removing and Installing/Replacing Trim For Head-Up Display

62 30 005 Removing And Installing/replacing Trim For Head-up Display

Special tools required:

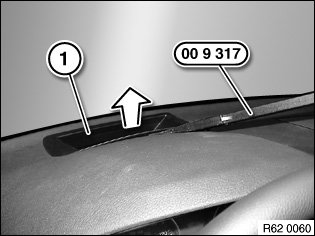

Use special tool 00 9 317 to lift the trim for the head-up display (1) out of the instrument panel in the direction of the arrow.








Installation:

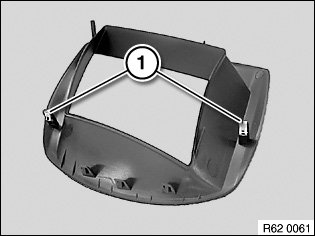

Make sure retaining clips (1) are correctly seated on trim for head up display.
Make sure trim for head up display is correctly engaged on instrument panel.
