Splash Guard: Service and Repair

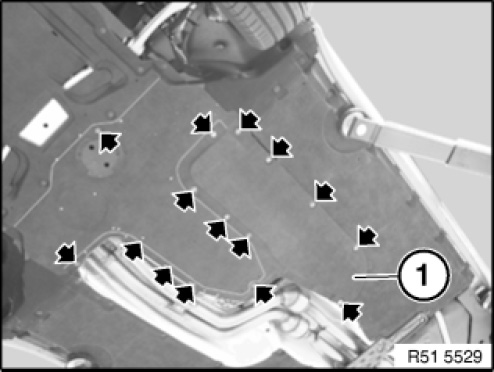

51 47 491 Removing And Installing/Replacing Rear Underbody ProtectionUnscrew all bolts.
Tightening torque 51 75 1AZ.
Remove underbody protection (1).
Installation note:
Make sure underbody protection (1) is correctly seated.
