33 34 060 Removing and Installing/Replacing Control Unit For Rear Axle Slip Control

33 34 060 Removing and installing/replacing control unit for rear axle slip control





Important!
Read and comply with notes on protection against electrostatic discharge (ESD protection).





Necessary preliminary tasks:
^ Remove battery

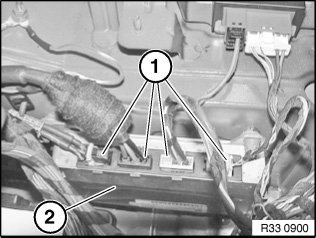

Unlock plug connection (1) on control unit (2) and disconnect.





Release nut (1) and remove control unit (2).

Tightening torque 33 34 5AZ.





After installation:
^ Replacement only: Carry out programming/encoding
