32 00 620 Adjusting Rear Axle

32 00 620 Adjusting rear axle





Note:
A camber change always means a toe change as well. The camber must therefore be adjusted first.





Note:
Vehicles with ACC only:
^ After an adjustment of the rear axle which alters the driving axis, check adjustment of ACC sensor





Adjusting camber:
Replace nut (2) prior to adjustment and tighten to 5 Nm.

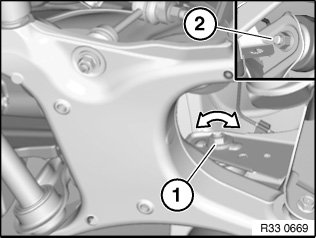

Turn eccentric bolt (1) to adjust camber to setpoint value.

Tighten nut (2).

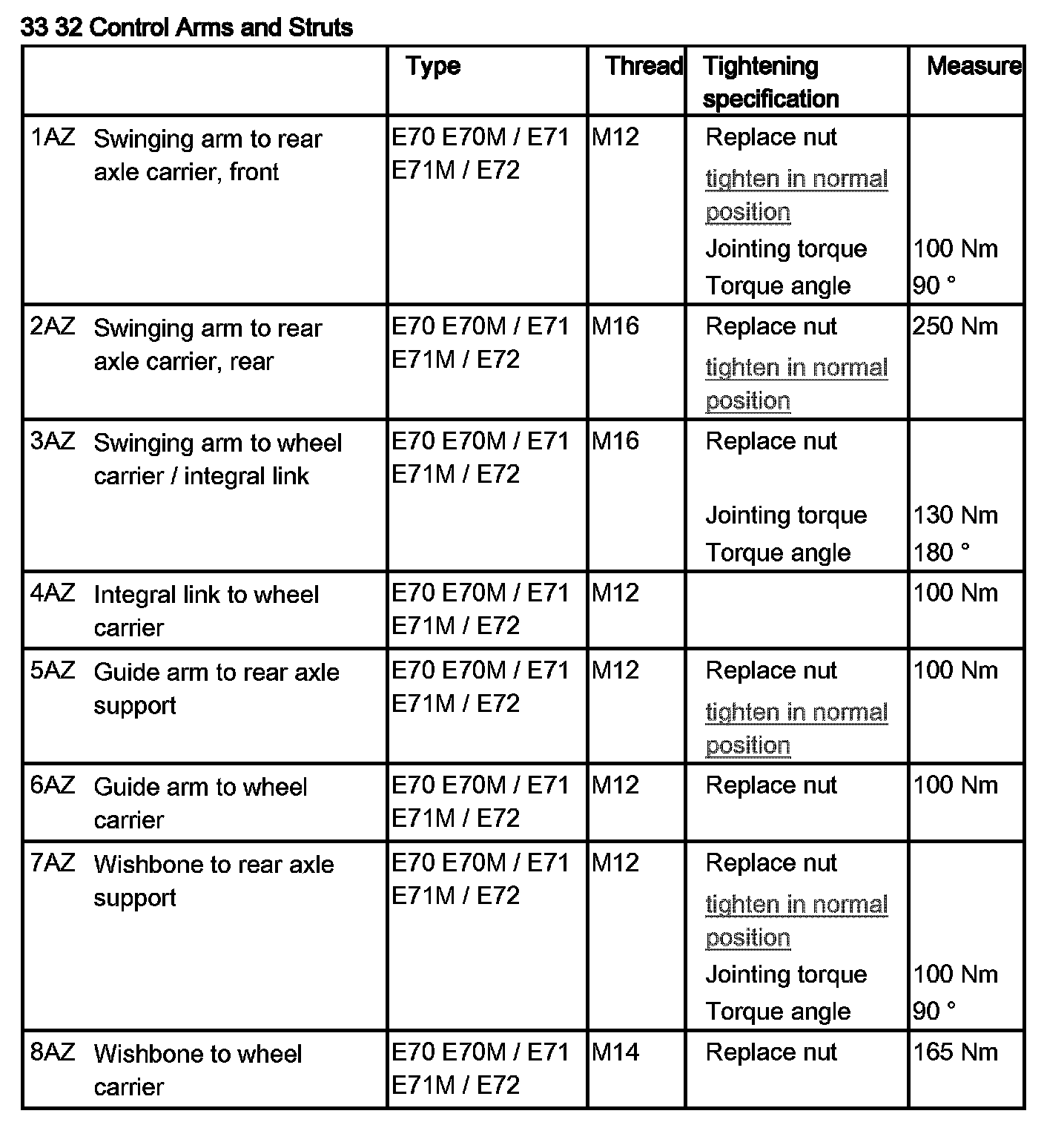

Tightening torque 33 32 2AZ.





Adjusting toe:
Replace nut (2) prior to adjustment and tighten to 5 Nm.

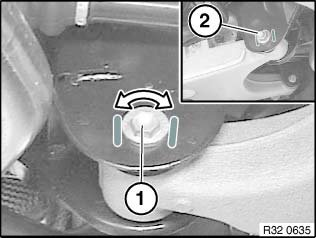

Turn eccentric bolt (1) to adjust toe to setpoint value.

Tighten nut (2).

Tightening torque 33 32 5AZ.
