Instruments - Cluster Reflection In Windshield

Bulletin 85-10-6

Date Sept. '84

Ref. No. 84-289-10
SUBJECT: INSTRUMENT CLUSTER REFLECTION IN WINDSHIELD ON DRIVER SIDE

MODELS AFFECTED: 1985 ELECTRA AND PARK AVENUE

NEW BEZEL:

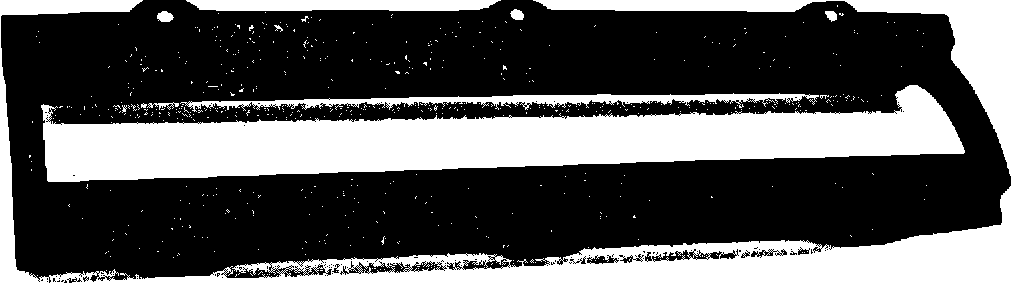

Comments have been received of reflection during night time driving on early production cars. This may be corrected by installing a new cluster bezel P/N 25523812 which has a longer upper visor. (See Illustration). Install by removing instrument panel pad then remove six 7 mm screws that hold bezel in place. Install new bezel and reinstall instrument panel pad.
WARRANTY INFORMATION

Labor Operation Number T5073

Failure Code 92

Labor Hours .4
