Heater Core Installation

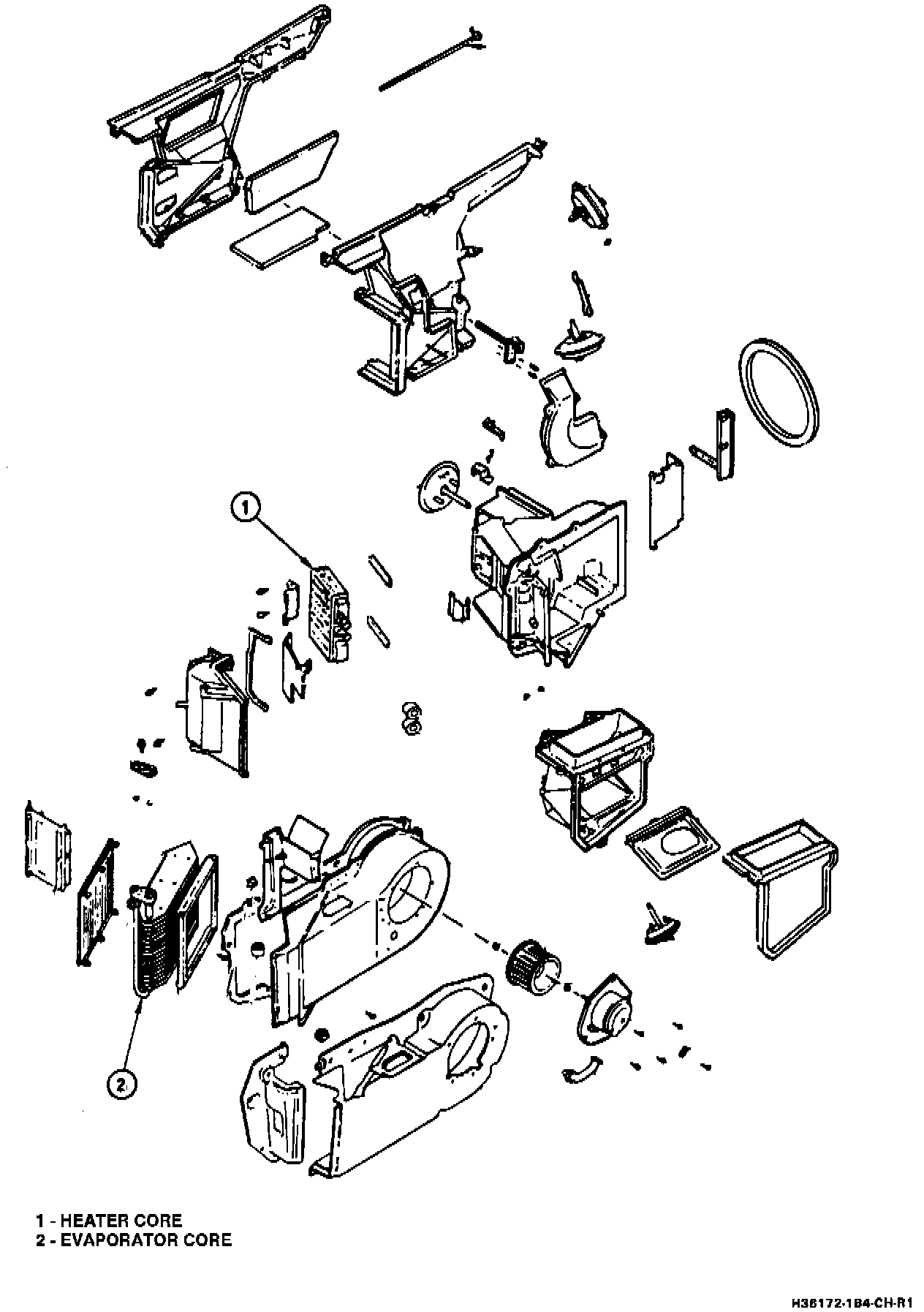

A/C Heater And Evaporator:
INSTALL OR CONNECT 1.
Heater core.
2.
Heater hoses.
3.
Splash cover.
4.
Heater core cover.
5.
Programmer.
6.
Programmer linkage and linkage cover.
7.
Wires and hoses to programmer.
8.
Lower Instrument Panel
(I/P) trim plate.
9.
Center I/P trim plate.
10.
Right sound insulator.
11.
Fill
cooling system.
12.
Negative battery cable.
