Control Module HVAC

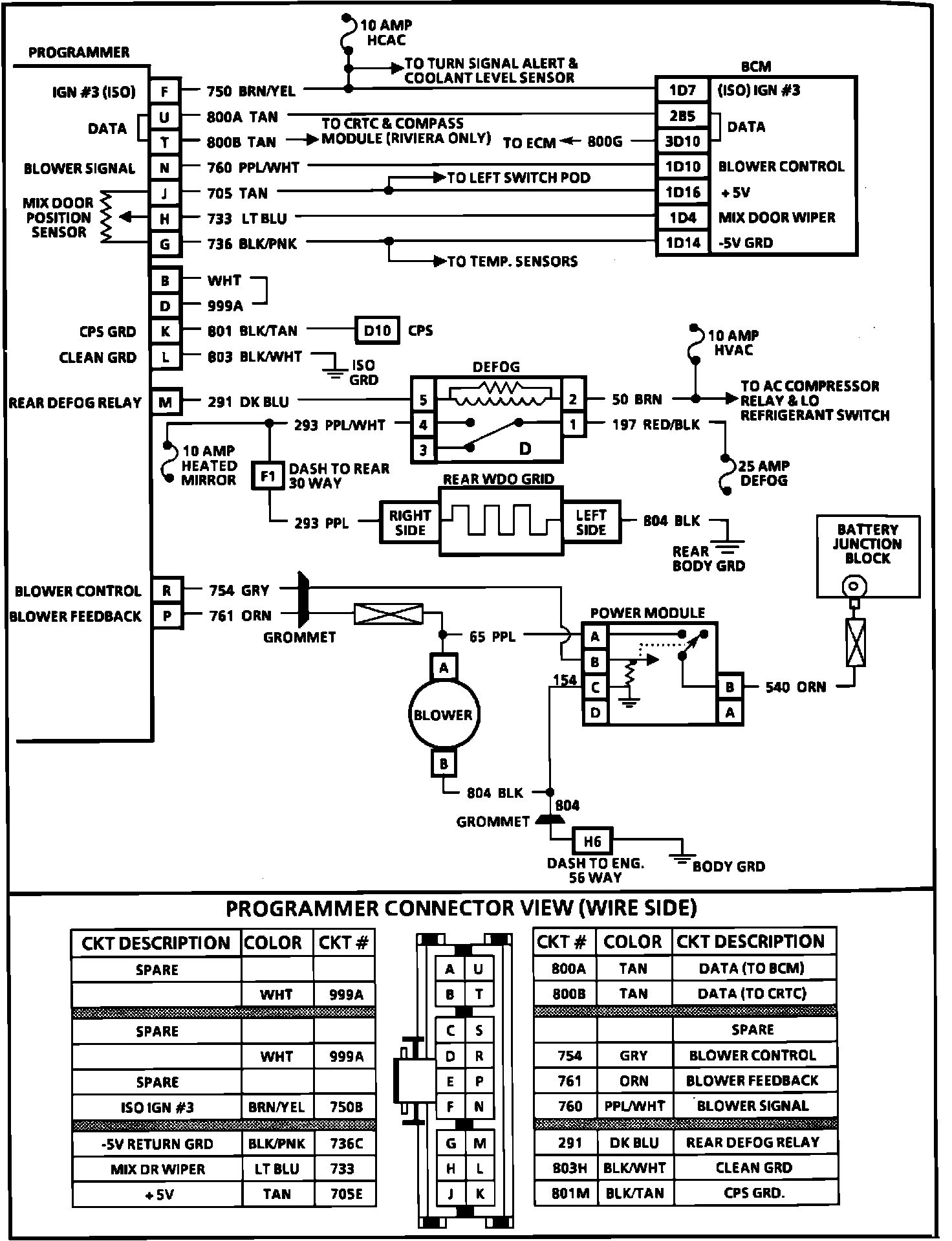

Programmer Schematic:
F
= IGN #3 (ISO)
U
= Data
T
= Data
N
= Blower Signal
J
= Mix Door Position Sensor
H
= Mix Door Position Sensor
G
= Mix Door Position Sensor
K
= CPS Ground
L
= Clean Ground
M
= Rear Defog Relay
R
= Blower Control
P
= Blower Feedback
1D7
= (ISO) IGN #3
2B5
= Data
3D10
= Data
1D10
= Blower Control
1D16
= +5V
1D4
= Mix Door Wiper
1D14
= -5V Ground
