Compressor Replacement
RIVIERA, REATTA
1.
Disconnect battery ground cable.
2.
Discharge A/C system.
3.
Disconnect compressor electrical connections.
4.
Raise and support vehicle.
5.
Remove flywheel cover.
6.
Disconnect starter electrical connector, remove starter.
7.
Remove hose assembly from rear of compressor, then remove compressor.

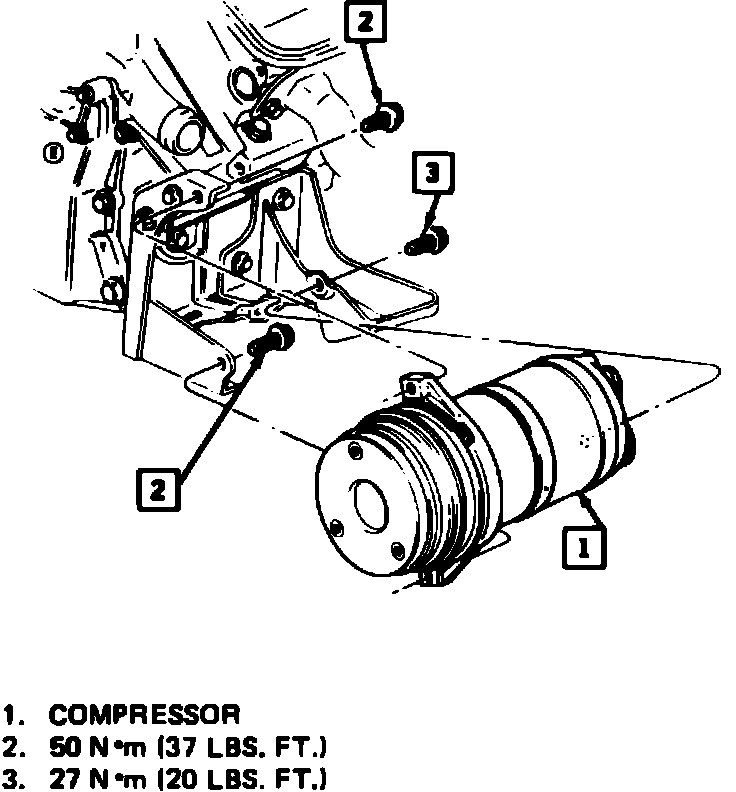

Fig. 14 Compressor mounting. Electra, LeSabre, Riviera & Toronado:
Compressor Mounting
