Part 1 of 3

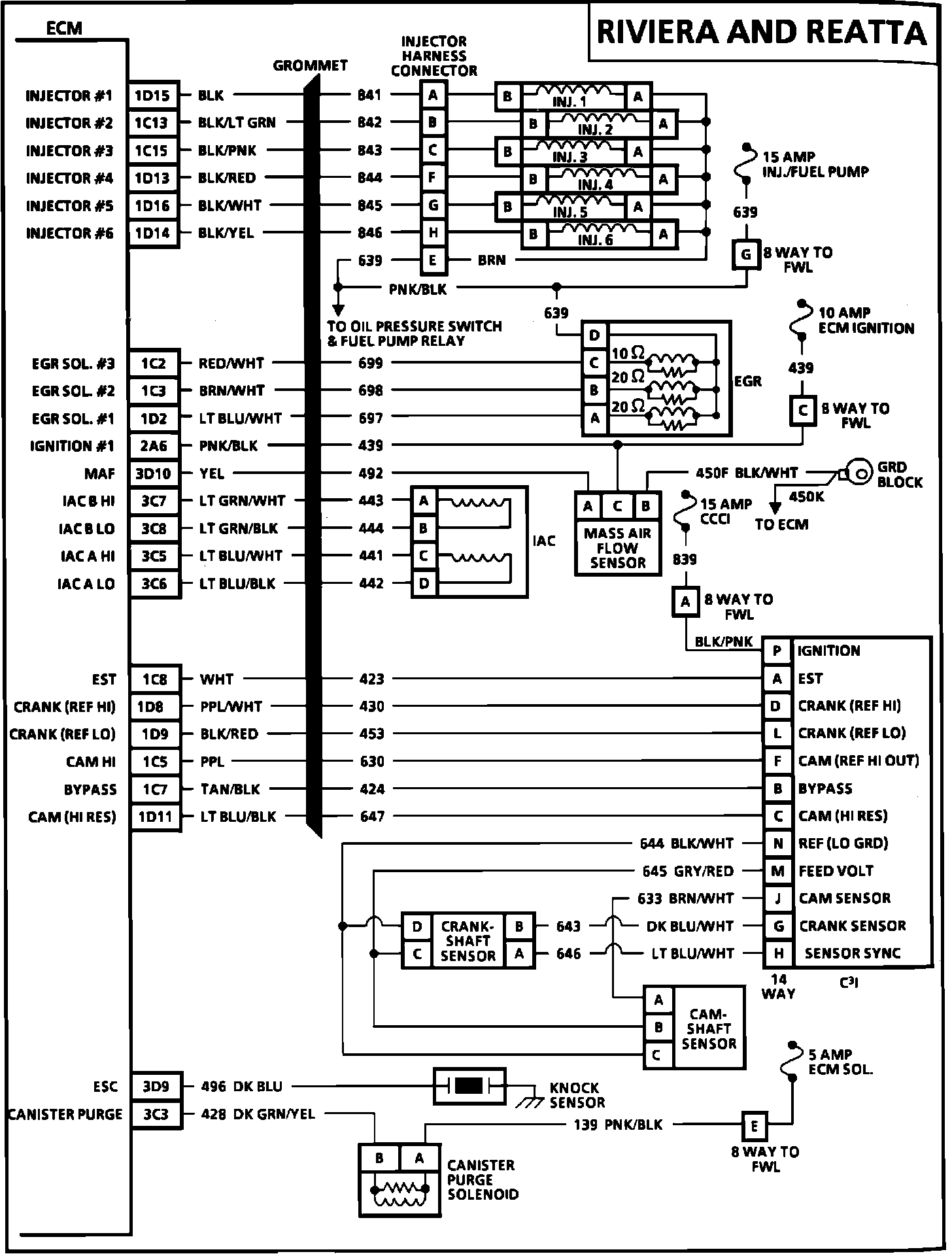

ECM Schematic (1 Of 3):

1D15 = Injector #1
1C13 = Injector #2
1C15 = Injector #3
1D13 = Injector #4
1D16 = Injector #5
1D14 = Injector #6
1C2 = EGR Sol. #3
1C3 = EGR Sol. #2
1D2 = EGR Sol. #1
2A6 = Ignition #1
3D10 = MAF
3C7 = IAC B HI
3C8 = IAC B LO
3C5 = IAC A HI
3C6 = IAC A LO
1C8 = EST
1D8 = Crank (REF HI)
1D9 = Crank (REF LO)
1C5 = Cam HI
1C7 = Bypass
1D11 = Cam (HI RES)
3D9 = ESC
3C3 = Canister Purge
