Part 2 of 3

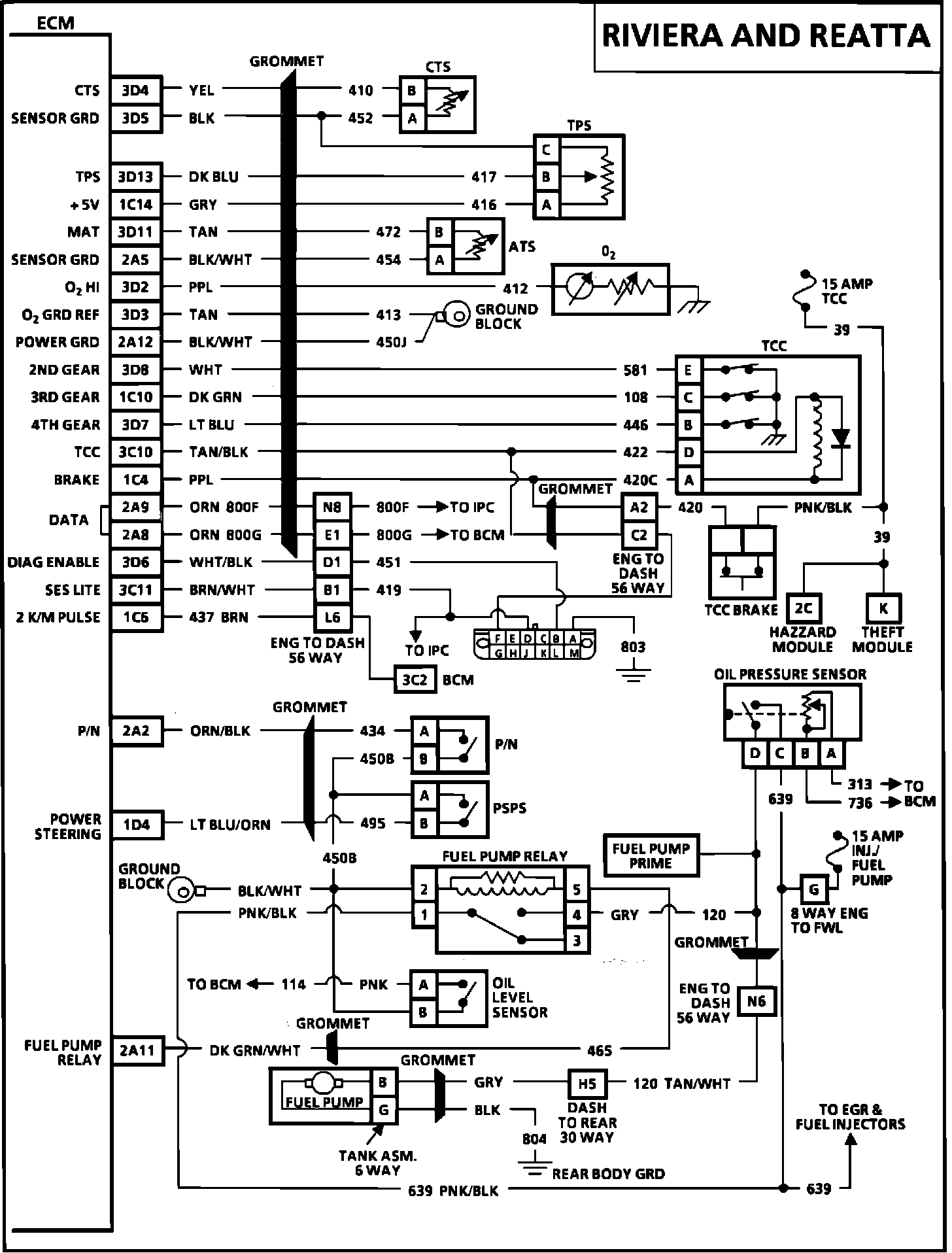

ECM Schematic (2 Of 3):

3D4 = CTS
3D5 = Sensor Ground
3D13 = TPS
1C14 = +5V
3D11 = MAT
2A5 = Sensor Ground
3D2 = 02 HI
3D3 = 02 Ground Ref.
2A12 = Power Ground
3D8 = 2nd Gear
1C10 = 3rd Gear
3D7 = 4th Gear
3C10 = TCC
1C4 = Brake
2A9 = Data
2A8 = Data
3D6 = Diag. Enable
3C11 = SES Lite
1C6 = 2 K/M Pulse
2A2 = P/N
1D4 = Power Steering
2A11 = Fuel Pump Relay
