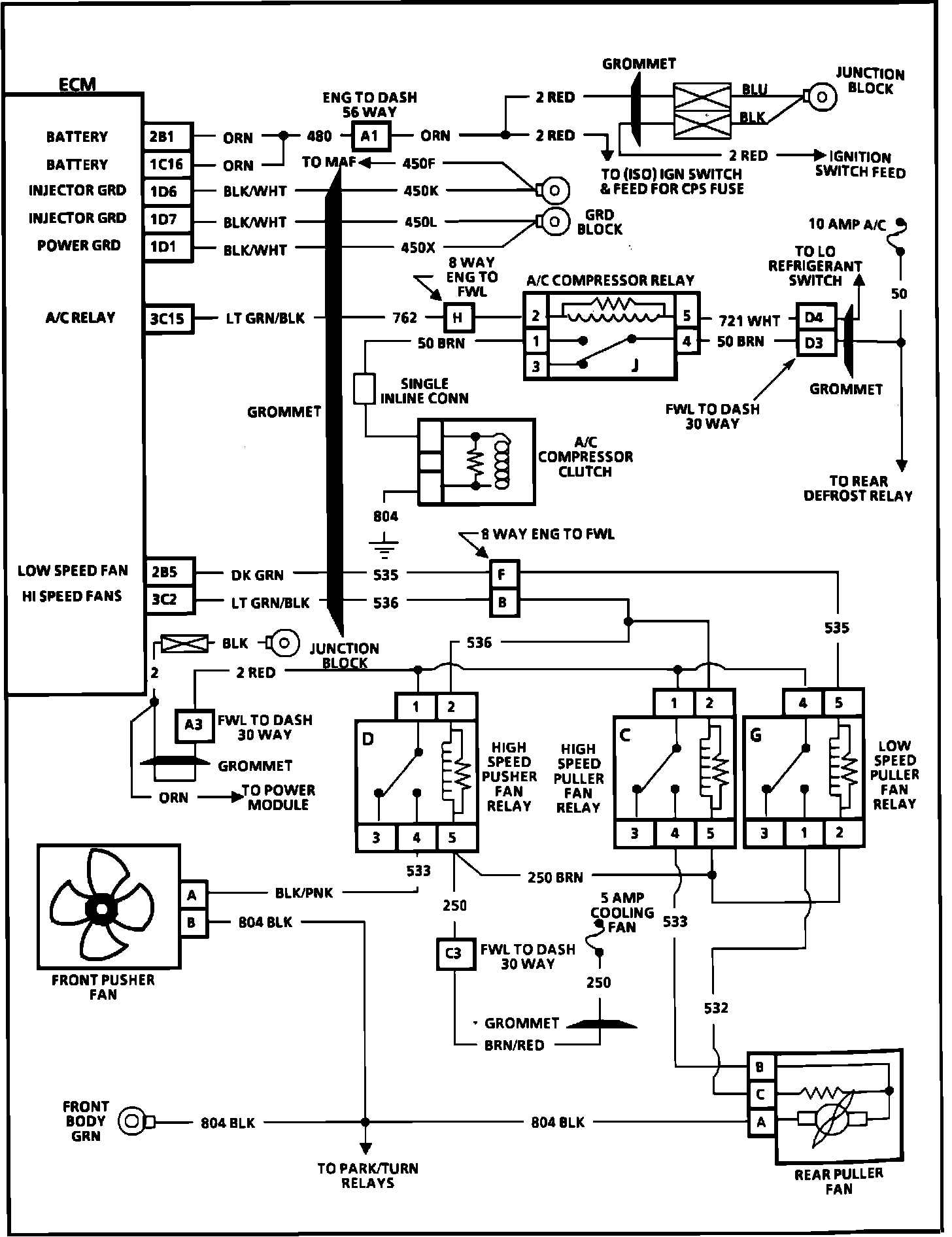

ECM Schematic (3 Of 3):







2B1 = Battery
1C16 = Battery
1D6 = Injector Ground
1D7 = Injector Ground
1D1 = Power Ground
3C15 = A/C Relay
2B5 = Low Speed Fan
3C2 = High Speed Fans
