Fuel Filter: Service and Repair

Fuel Filter:

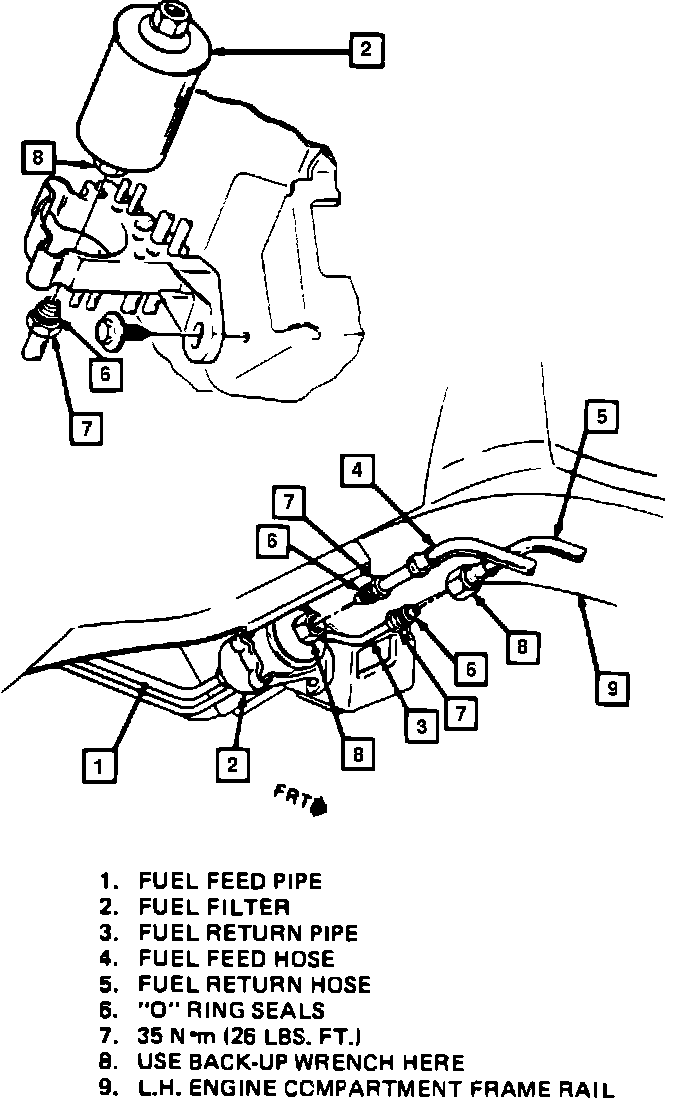

FUEL FILTER LOCATION: The fuel filter is located on the left side of the car, where the engine fuel hoses connect to the body mounted fuel pipes.

REMOVAL:

1. Relieve the fuel system pressure, see MAINTENANCE PROCEDURES/FUEL SYSTEM PRESSURE RELIEF.
2. Raise the car on a hoist.
3. Remove the fuel lines from the filter, using a back-up wrench to prevent damage to the fuel lines.
4. Remove the filter from the car.

INSTALLATION:

1. Install the filter in position loosely.
2. Using new O-ring seals, install the fuel lines into the filter.
NOTE:
^ Use a back-up wrench to prevent damage to the filter, O-ring or the fuel lines.
^ Torque the fuel line fittings to specification, see SPECIFICATIONS/MECHANICAL.
3. Secure the filter to the car.
4. Lower the car.
5. START the engine and check for fuel leaks.
