Armrest

2 Door:

NOTICE: When removing a door trim panel that has a power window switch attached, the ignition switch must be in the "off" position. This will eliminate the possibility of shorting out the switch if a screwdriver or awl is used to remove the switch from the harness.

Removal of the trim panel is required in order to service the armrest.

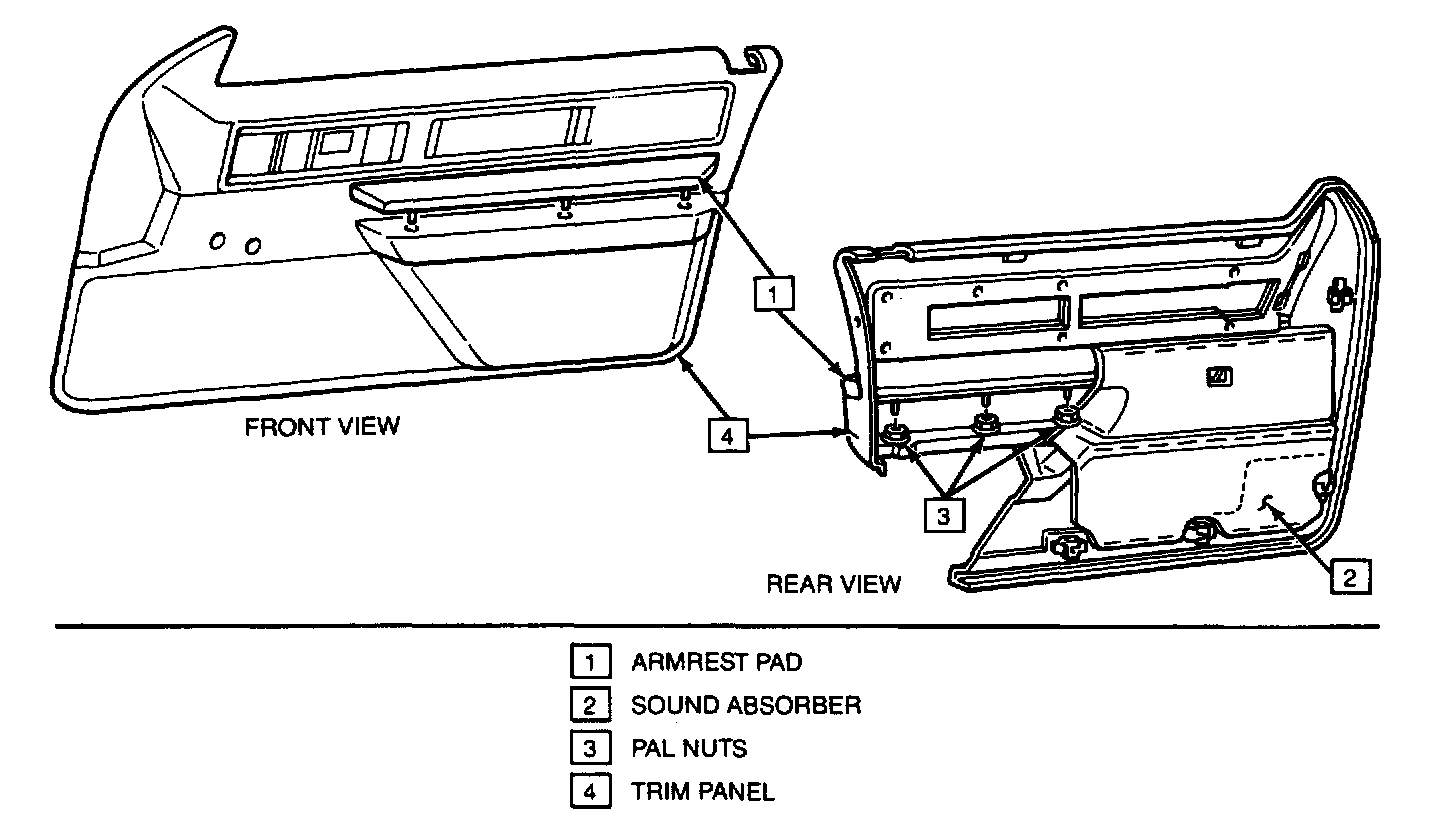

Remove or Disconnect

1. Trim panel (4).
2. Carefully peel back sound absorber (2) to reveal pal nuts (3).
3. Pal nuts (3).
4. Armrest pad (1).

Install or Connect

1. Armrest pad (1) to trim panel (4).
2. Pal nuts (3).
3. Sound absorber (2) to trim panel (4) with a suitable adhesive.
4. Trim panel (4).
