Engine Controls - Revised Chart A-5, Fuel Pump Relay
Bulletin: 92-6E-30
Date: Aug. '93
Ref.No.: 92-352-6E
Corp.Ref.No.: 316503
SUBJECT:
SERVICE MANUAL UPDATE - SECTION 6E2 - REVISED CHART A-5
MODELS AFFECTED:
1989-92 CENTURY WITH 2.5L ENGINE (VIN R-RPO LR8)

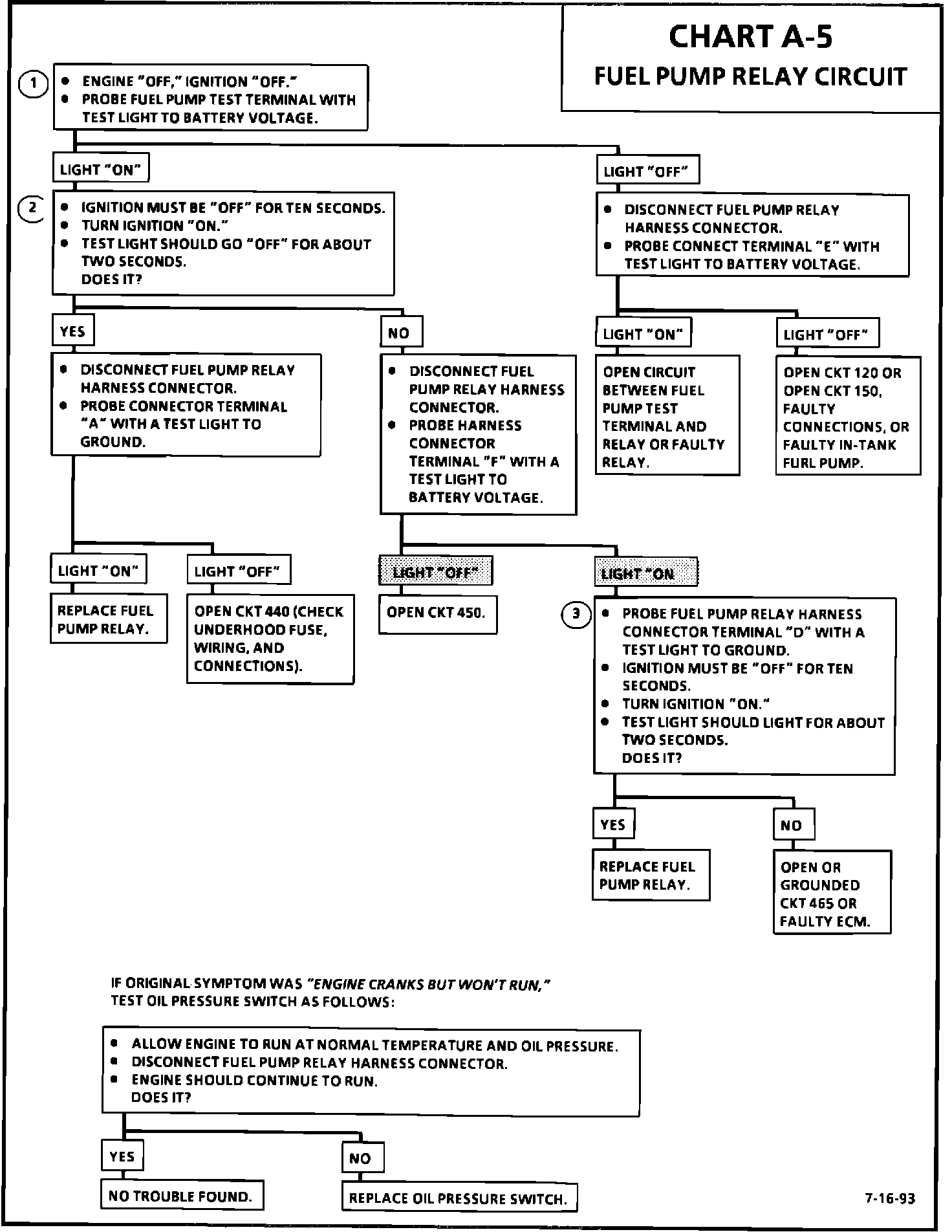

This bulletin updates Section 6E2 for the 1989-92 Century Service Manual. The updated A-5 Chart represents a change in diagnosing the
fuel pump relay circuit.
