System Check - Compressor Controls
�JCompressor Controls System Check:
Compressor Controls System Check^
Complete the A/C System Check as a guide to normal operation of the entire A/C system and for references to diagnostic tests.
^

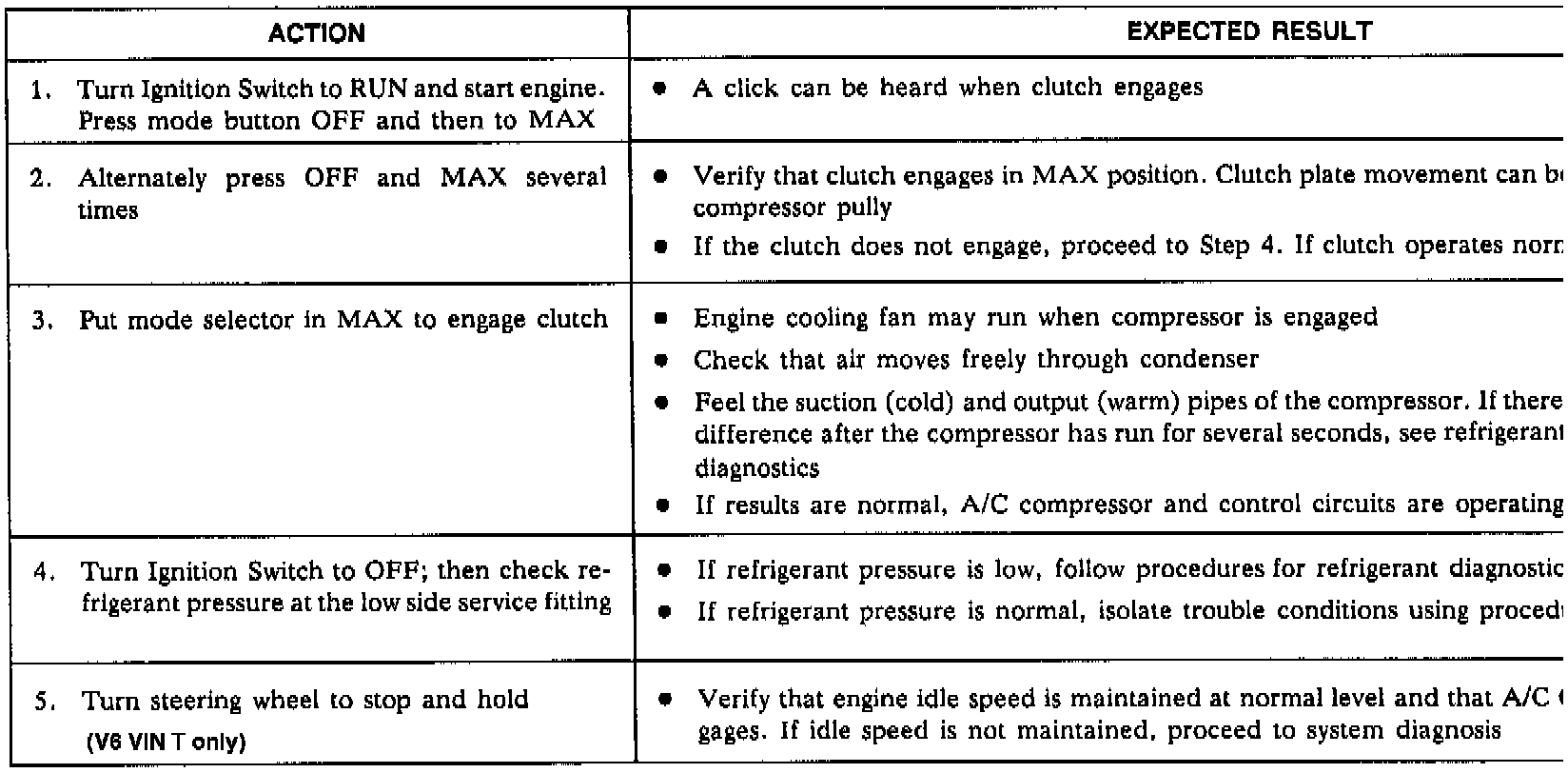

Use the System Check Table a guide to normal
A/C compressor operation.
^
Refer to System Diagnosis when a result is not normal.
