Engine Control Module

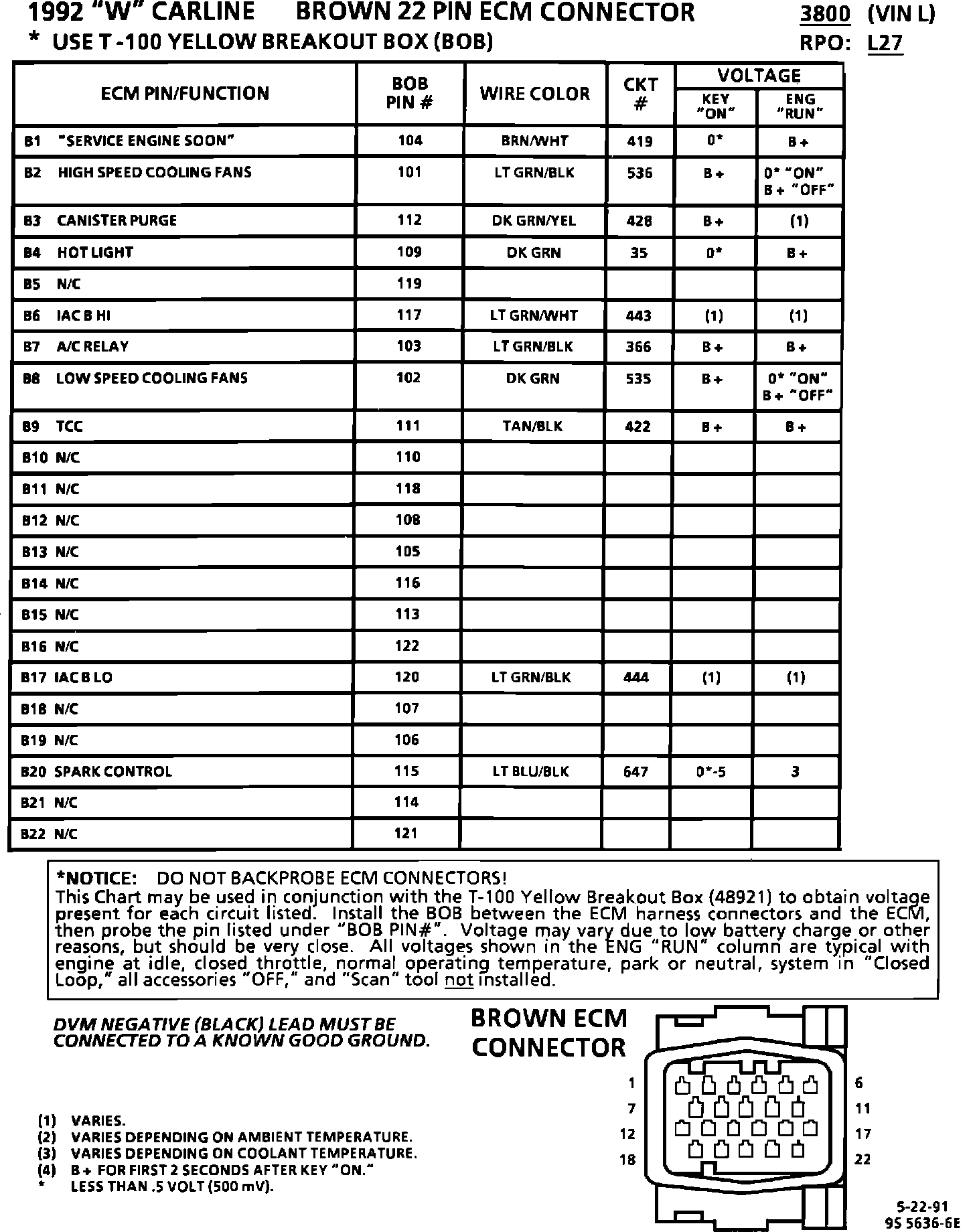

PCM Pin/Voltage Reference Chart (1 Of 4):





Part 1 of 4

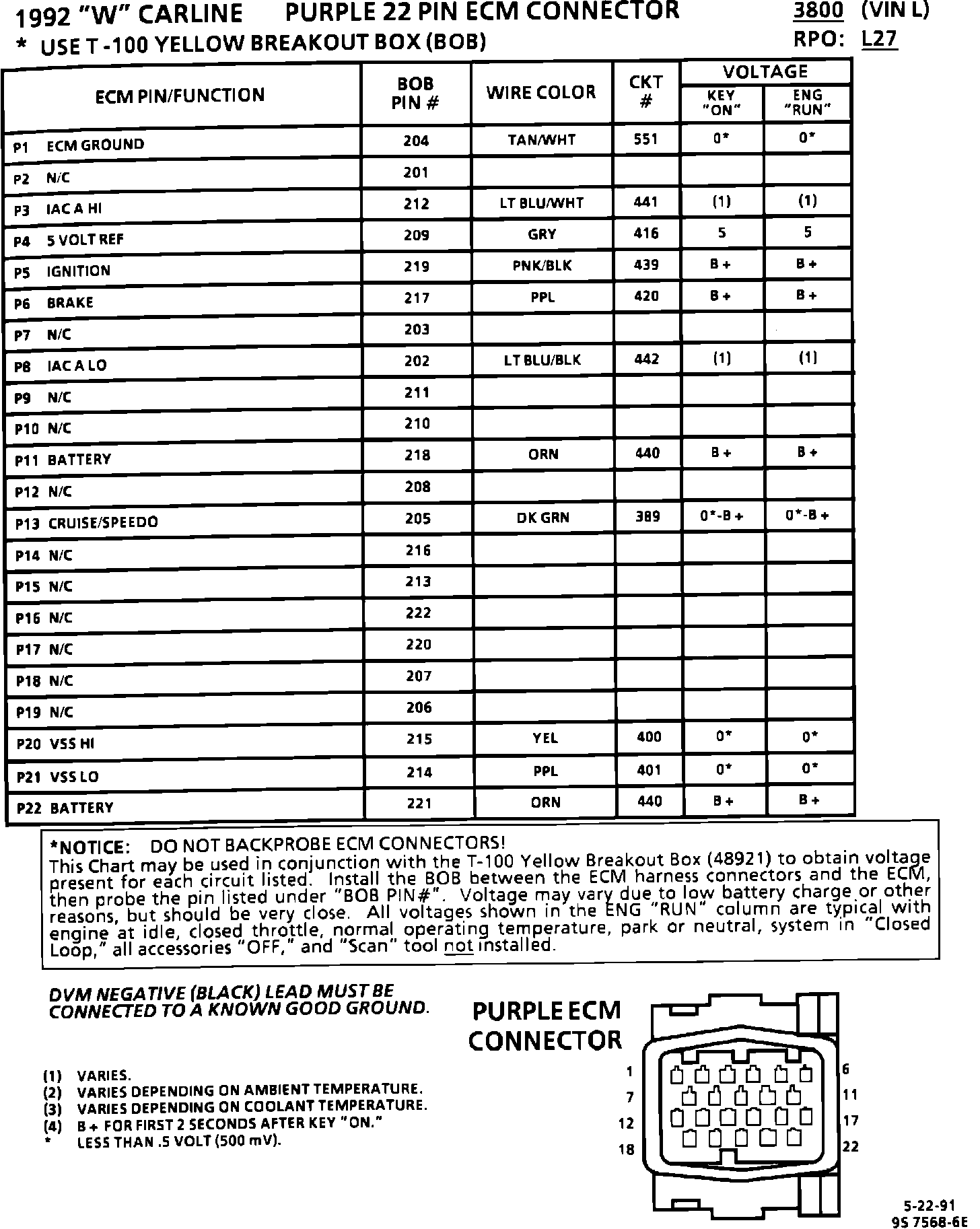

PCM Pin/Voltage Reference Chart (2 Of 4):





Part 2 of 4

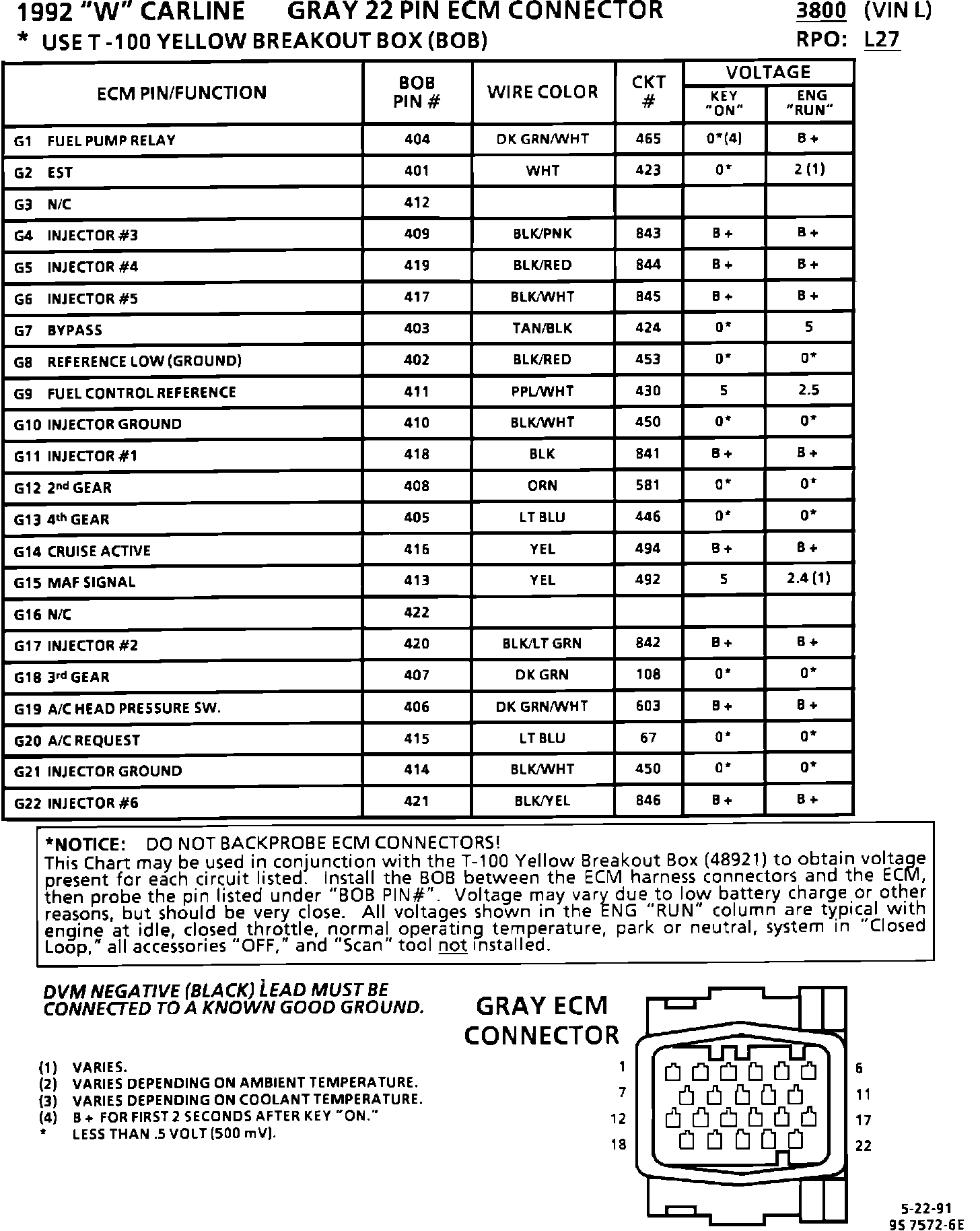

PCM Pin/Voltage Reference Chart (3 Of 4):





Part 3 of 4

PCM Pin/Voltage Reference Chart (4 Of 4):





Part 4 of 4
