ECM - Revised Wiring Diagram Chart A1, A2, Code 16, 17

Bulletin: 92-6E-26
Date: Nov. '92
Ref.No.: 92-309-6E
Corp.Ref.No.: 216512

SUBJECT:
SERVICE MANUAL UPDATE - SECTION 6E3 - WIRING DIAGRAM REVISIONS

MODELS AFFECTED:
1992 SKYLARK WITH 3300 (VIN N) ENGINE

This bulletin updates the following pages in the 1992 Skylark Service Manual with 3300 (VIN N):

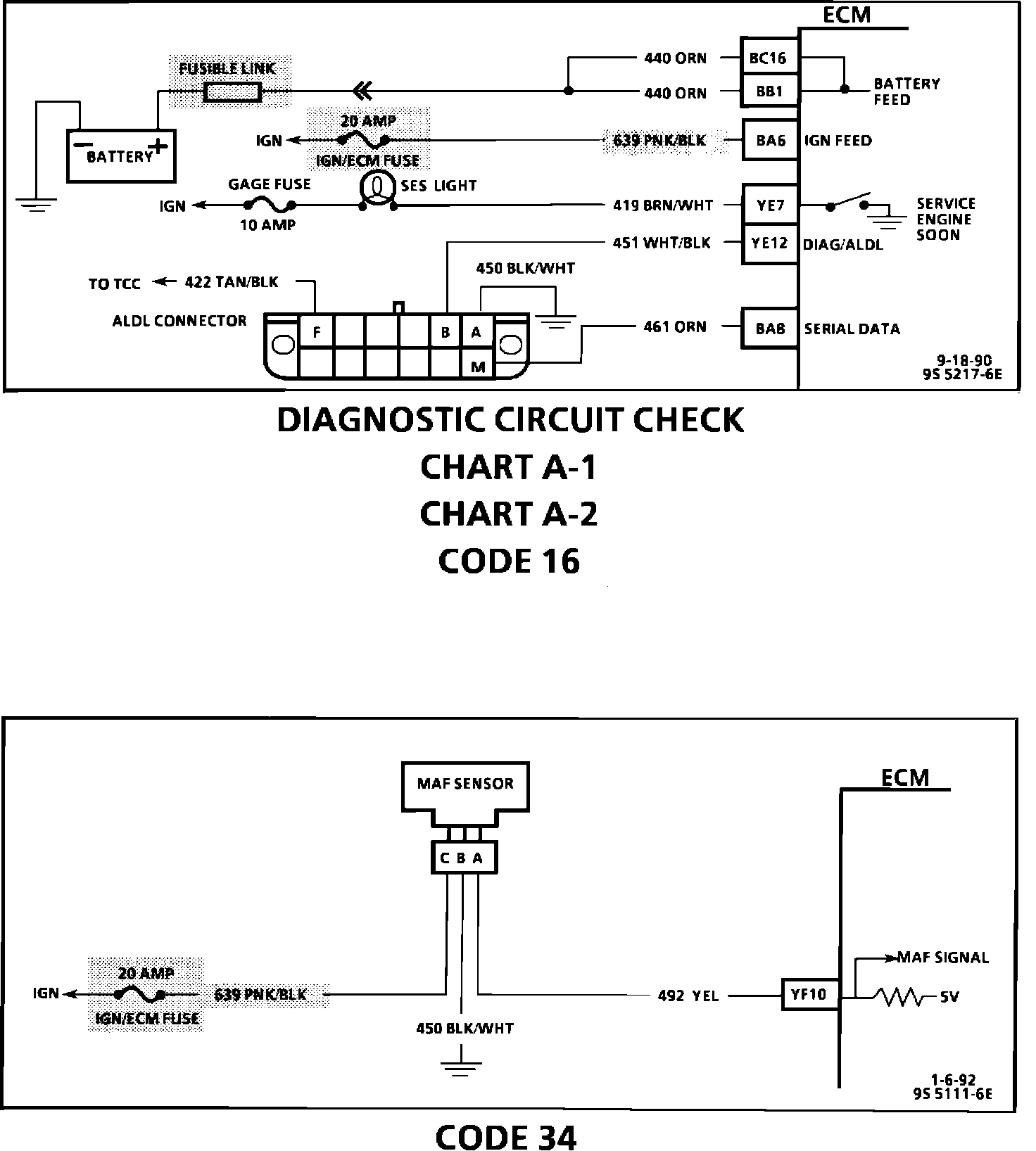

- ECM Wiring Diagram (3 of 3) 6E3-A-6
- Facing Page Art for Diagnostic Circuit Check 6E3-A-10
- Facing Page Art for Chart A-1 6E3-A-16
- Facing Page Art for Chart A-2 6E3-A-18
- Facing Page Art for Code 16 Chart 6E3-A-40
- Facing Page Art for Code 34 Chart 6E3-A-58

Also, CIRCUIT 439/ERLS FUSE should be changed to CIRCUIT 639/IGNITION ECM FUSE on the following pages:

- Chart A-1, Chart 6E3-A-16, 17
- Code 34, Chart 6E3-A-59
- ECM Symptom Chart (3 of 6) 6E3-B-21

Please make the appropriate changes to the 1992 Skylark Service Manual with 3300 (VIN N).
