ABS EBCM/EBTCM - Open Switch Input Test P Revised
Bulletin: 93-8-11Date: Feb. '93
Ref.No.: 93-91-8
Corp.Ref.No.: 308101
SUBJECT:
ELECTRICAL SYSTEMS MANUAL UPDATE - ANTILOCK BRAKE SYSTEM REVISED-EBCM/EBTCM OPEN SWITCH INPUT TEST P
MODELS AFFECTED:
1993 LESABRE 1993 PARK AVENUE/PARK AVENUE ULTRA
The information given in TEST P:
EBCM/EBTCM OPEN SWITCH INPUT TEST found in the Electrical Systems Manual has been revised to avoid confusion and misdiagnosis of the ABS system.

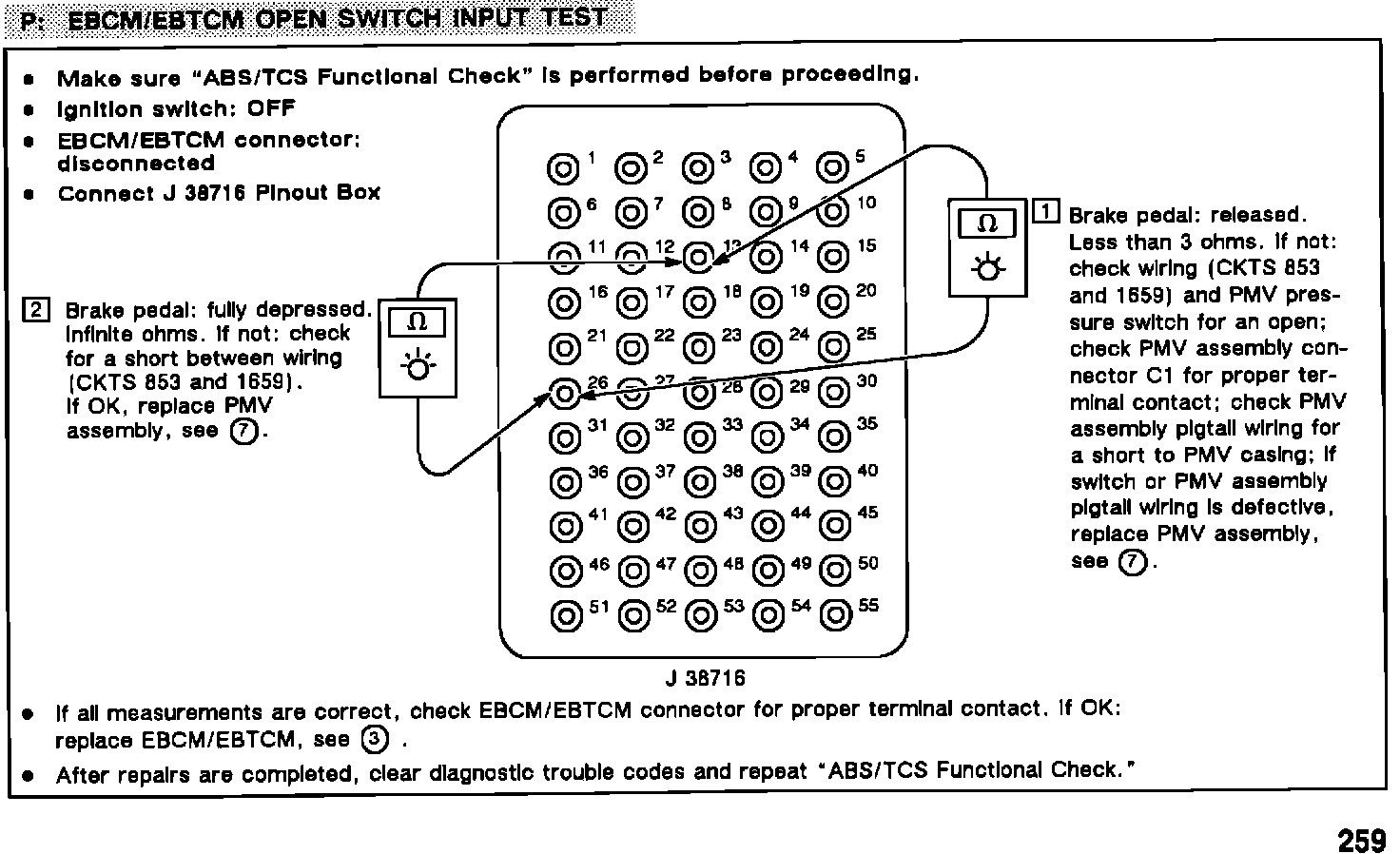

The revised chart should be inserted for proper ABS system diagnosis:
1993 LeSabre, Park Avenue/Park Avenue Ultra - Page 259
Please update your respective Electrical Systems Manual accordingly.
