Air Flow Meter/Sensor: Service and Repair

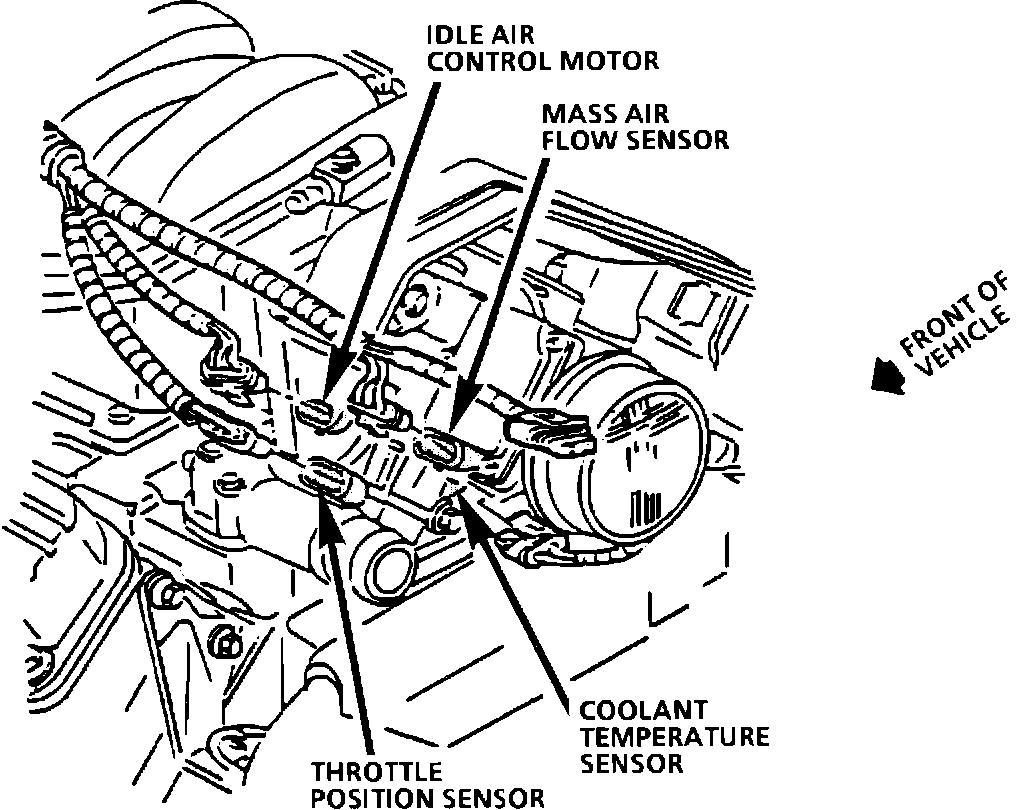

Front RH Side Of Engine:




Throttle Body:








REMOVAL:
- Disconnect the negative battery cable.
- Remove the air cleaner assembly and fresh air duct.
- Remove the MAF sensor electrical connector.
- Remove the 4 MAF attaching screws.
- Remove MAF sensor.


INSTALLATION:
- Install the MAF sensor with attaching screws.
- Connect the MAF sensor electrical connector.
- Install the air cleaner assembly and fresh air duct.
- Connect the negative battery terminal.
