Vehicle Ride Height

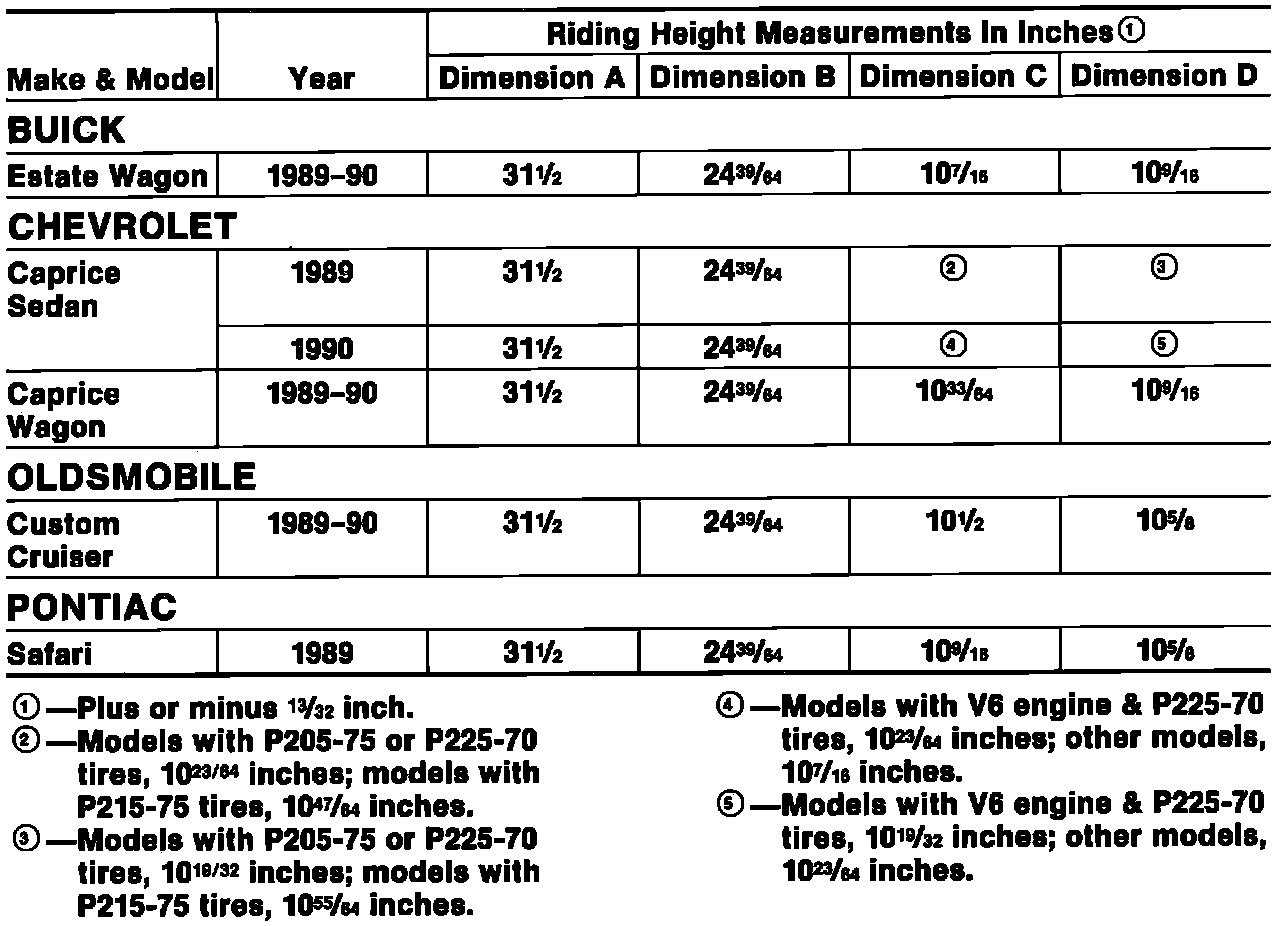

Fig. 3 Vehicle Riding Height Measurement Locations & Specifications (Part 1 Of 2). 1989-90:

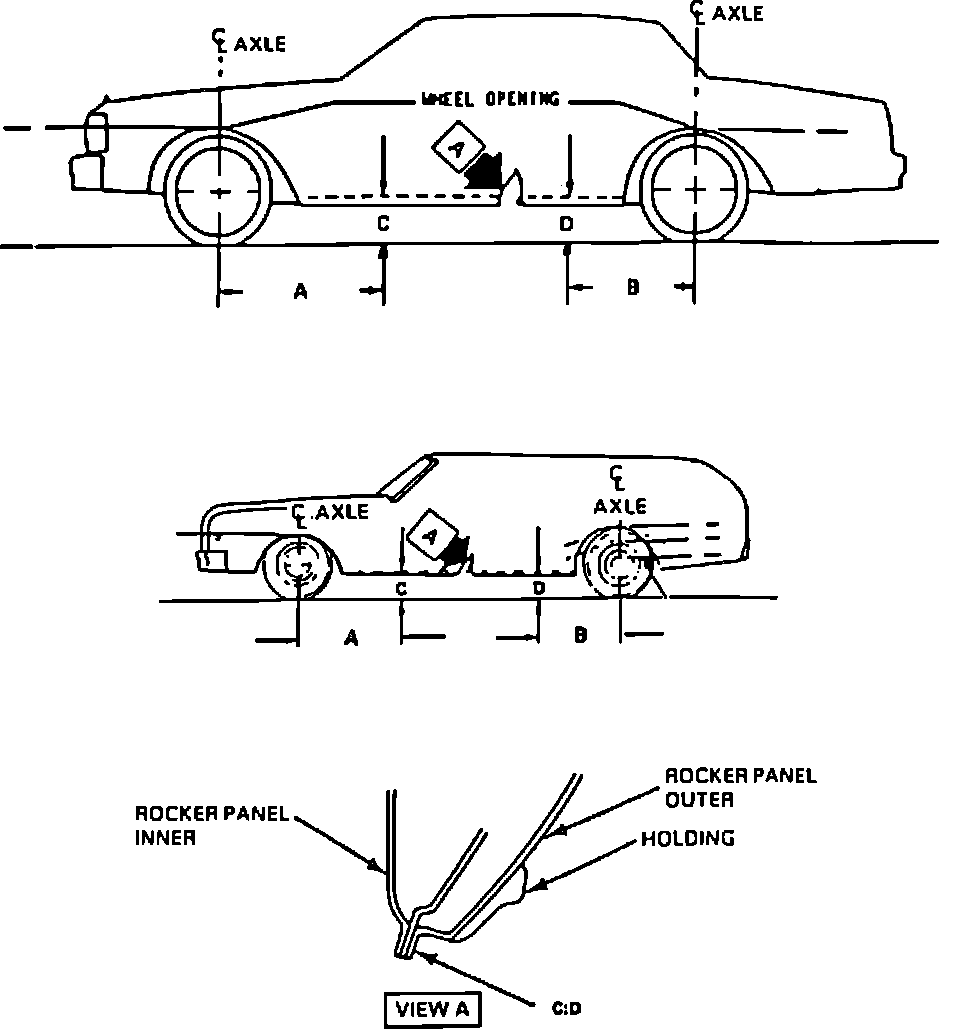

Fig. 3 Vehicle Riding Height Measurement Locations & Specifications (Part 2 Of 2). 1989-90:

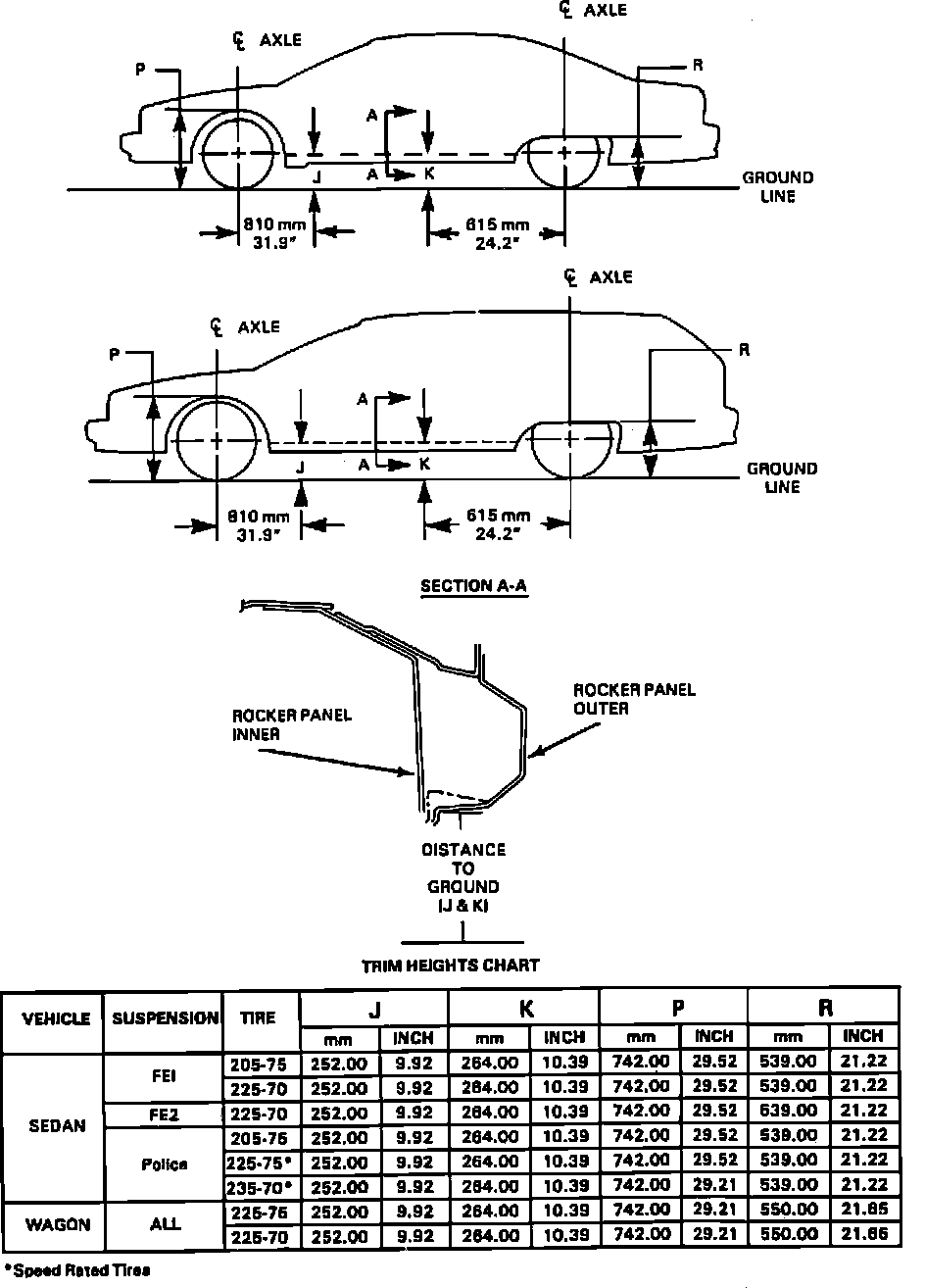

Fig. 4 Vehicle Riding Height Measurement Locations & Specifications. 1991:

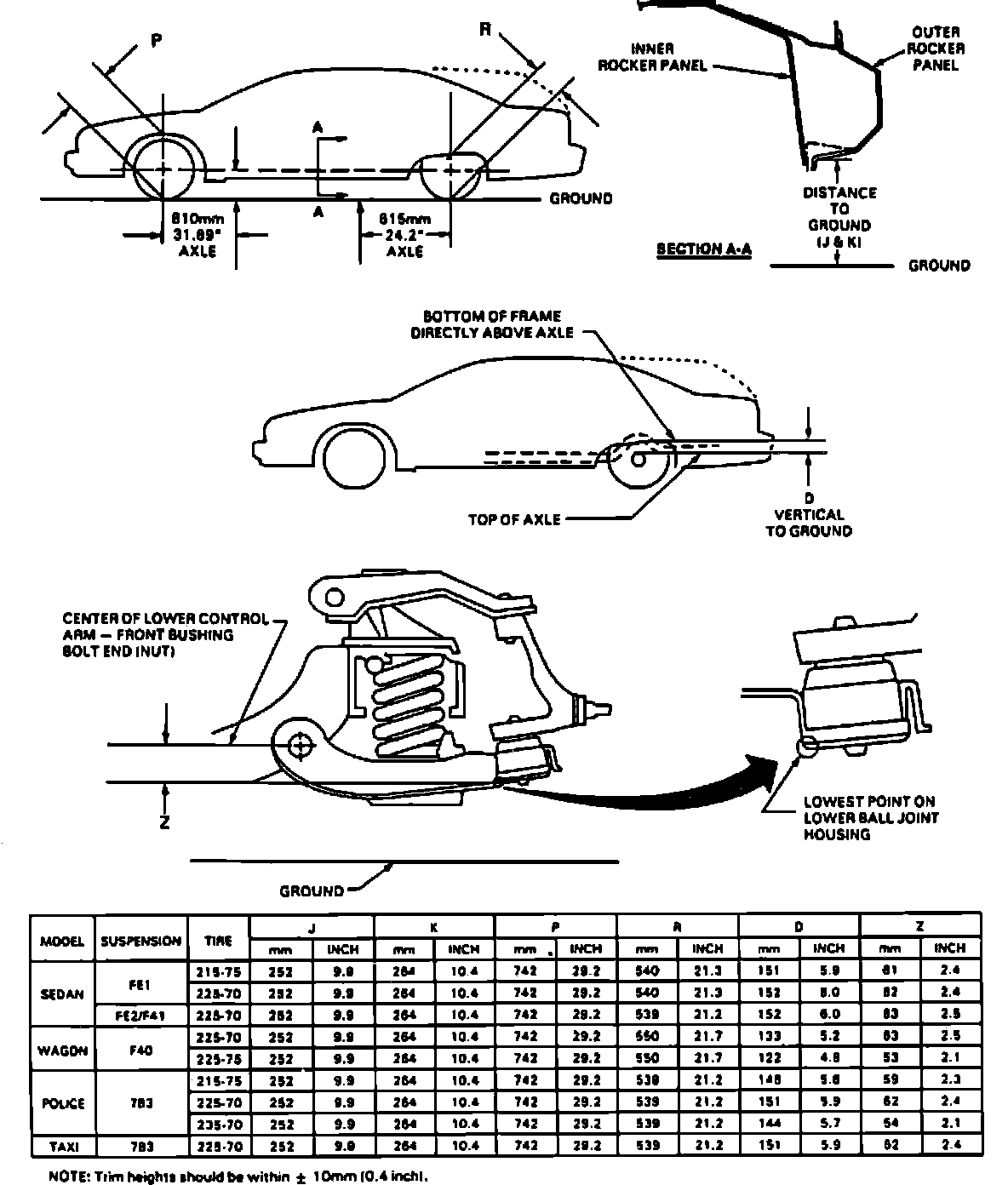

Fig. 5 Vehicle Riding Height Measurement Locations & Specifications. 1992:

Refer to Figs. 3 through 5, for ride height measurements and specifications.
