Test M

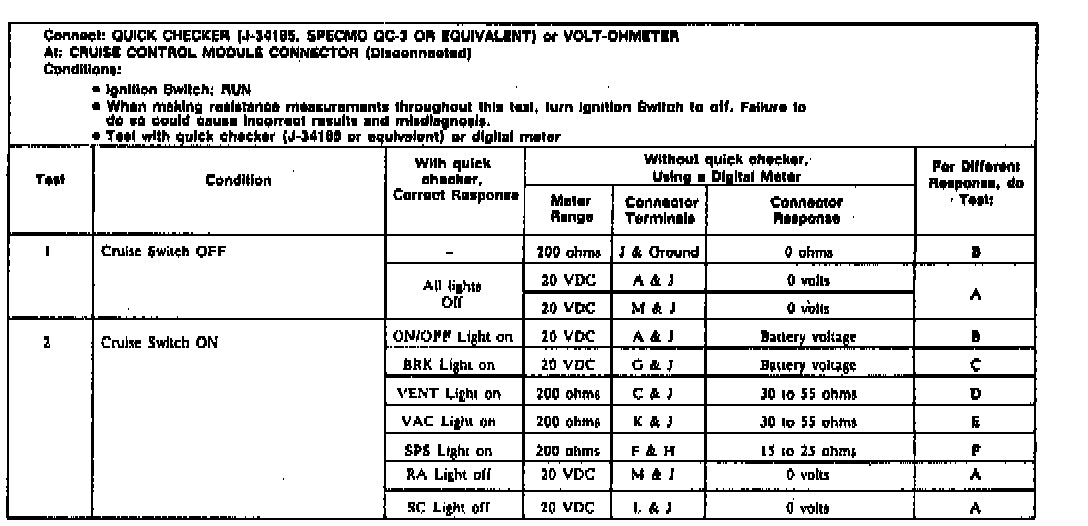

Fig. 47 Cruise Control System Isolation Test (Part 1 Of 2).:
Fig. 47 Cruise Control System Isolation Test (Part 2 Of 2).:
1.
Disconnect the
cruise control servo connector and repeat test 6 of the isolation test,
Fig. 47.
2.
If resistance is now open, replace
cruise control test.
3.
If resistance is still low, repair short in wire from terminal H of the
cruise control module to terminal D of the
cruise control servo.
