Evaporative Emissions System: Service and Repair

Evaporative Emission Canister:

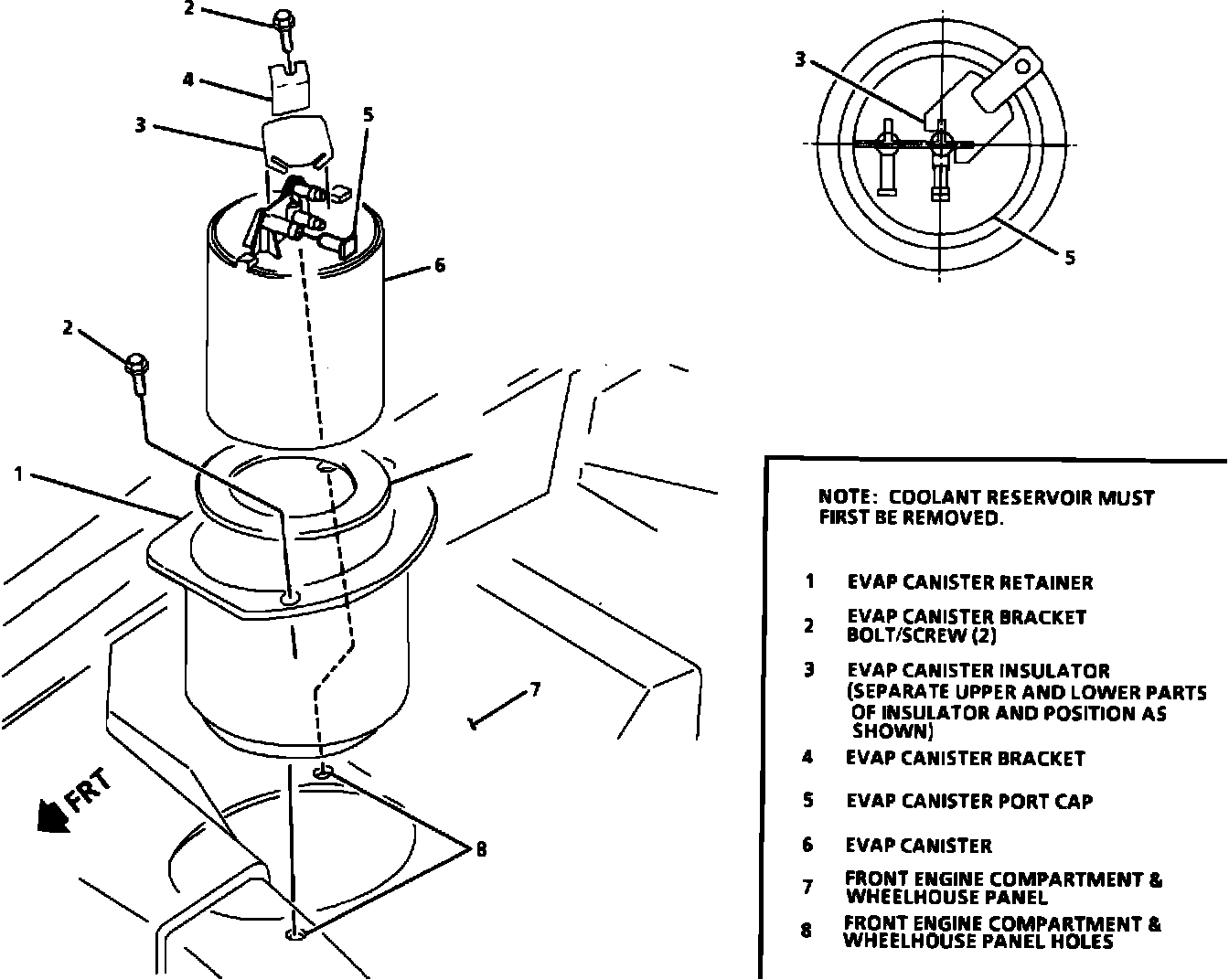

Canister

Remove or Disconnect
1. Remove radiator surge tank
2. Disconnect vapor hoses from canister
3. Remove canister retaining bolts
4. Remove canister from vehicle

Install or Connect
1. Reverse removal procedures to install
Torque Value: 1.9 N-m (16.8 lb.in.)



Purge Control Solenoid

Remove or Disconnect
1. Raise vehicle
2. Disconnect solenoid electrical connector
3. Remove solenoid attaching bolts
4. Remove solenoid from vehicle

Install or Connect
1. Reverse removal procedures to install
