Air Flow Meter/Sensor: Service and Repair

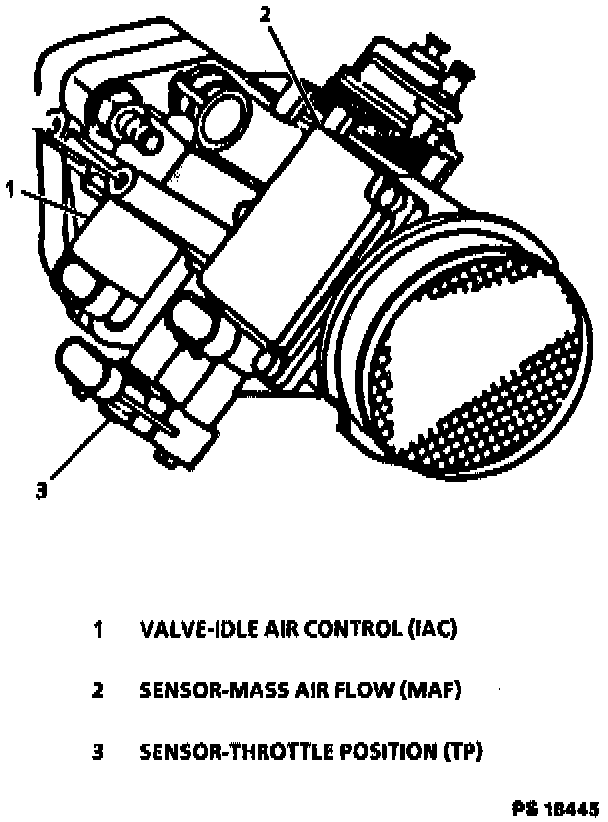

Throttle Body:






REMOVE OR DISCONNECT
1. Mass Air Flow (MAF) electrical connector.
2. MAF attaching screws.
3. MAF sensor.

INSTALL OR CONNECT
1. MAF sensor.
2. Electrical connector.
