Oil Pressure Sensor: Service and Repair

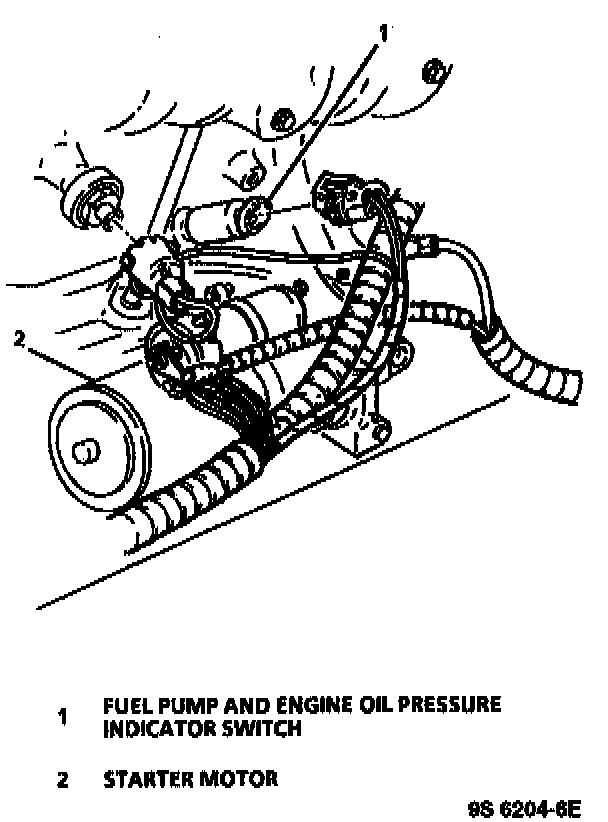

Fuel Pump And Engine Oil Pressure Switch:
REMOVE OR DISCONNECT 1.
Negative battery cable.
2.
Electrical connector.
3.
Fuel pump and engine oil pressure indicator switch.
INSTALL OR CONNECT 1.
Fuel pump and engine oil pressure indicator switch.
Tighten Fuel pump and engine oil pressure indicator switch to
12.5 Nm (111 lb. in.).
2.
Electrical connector.
3.
Negative battery cable.
