Inside Trim
REAR DOOR INSIDE TRIM - REPLACEMENT ^

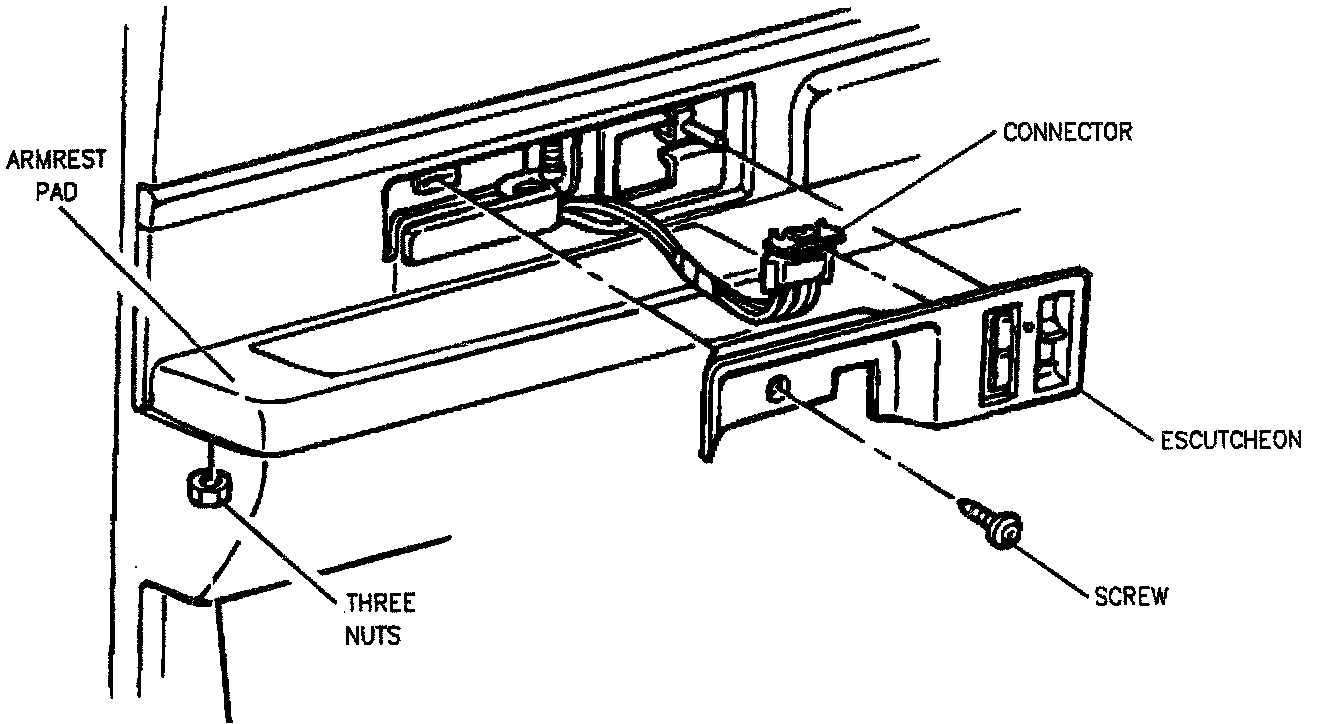

The switch plate is removed by placing a small thin-bladed tool between the armrest and the notch at the rear of the switch plate. Push in and up on the tool.
^
The escutcheon is attached to the trim panel with one screw and an electrical connector.
^
The armrest pad is attached to the trim panel with three nuts.
