Electrical Center

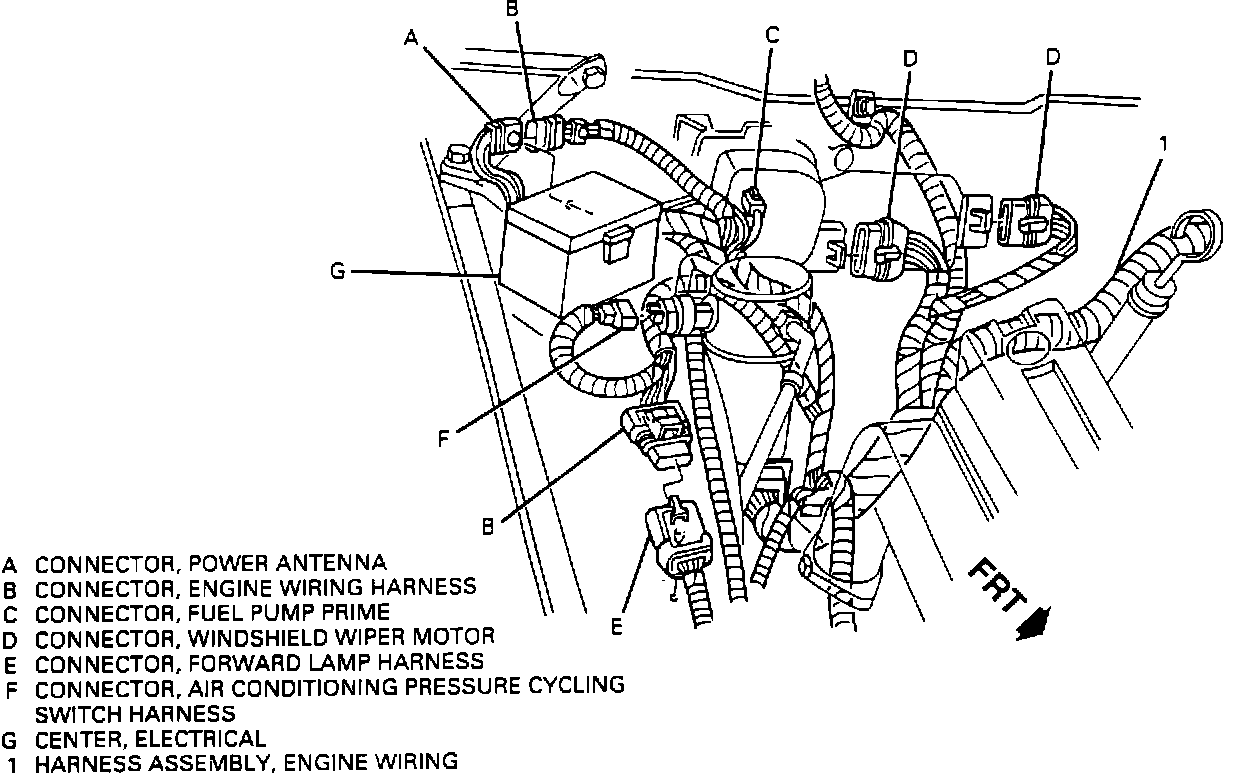

Electrical Center Wiring Harness Assembly:

A CONNECTOR, POWER ANTENNA
B CONNECTOR, ENGINE WIRING HARNESS
C CONNECTOR, FUEL PUMP PRIME
D CONNECTOR, WINDSHIELD WIPER MOTOR
E CONNECTOR, FORWARD LAMP HARNESS
F CONNECTOR, AIR CONDITIONING PRESSURE CYCLING SWITCH HARNESS
G CENTER, ELECTRICAL
1 HARNESS ASSEMBLY, ENGINE WIRING
