Refrigerant Pressure Sensor / Switch: Service and Repair

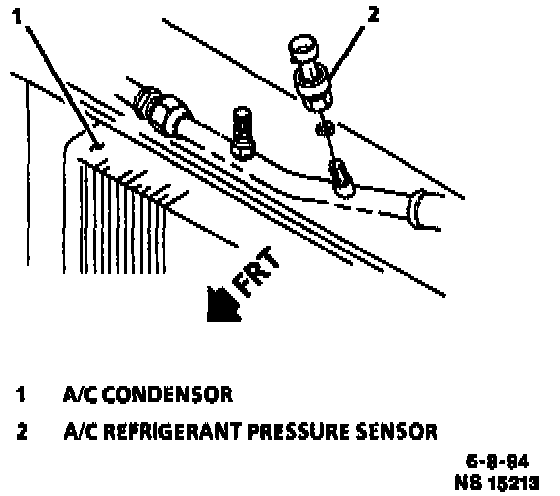

A/C Pressure Sensor:

REMOVE OR DISCONNECT
1. Negative battery cable.
2. Electrical connector.
3. Sensor.
4. O-ring.

INSTALL OR CONNECT
1. O-ring.
2. Sensor.

Tighten
Sensor to 4.75 Nm (42 lb. in.).

3. Electrical connector.
4. Negative battery cable.
