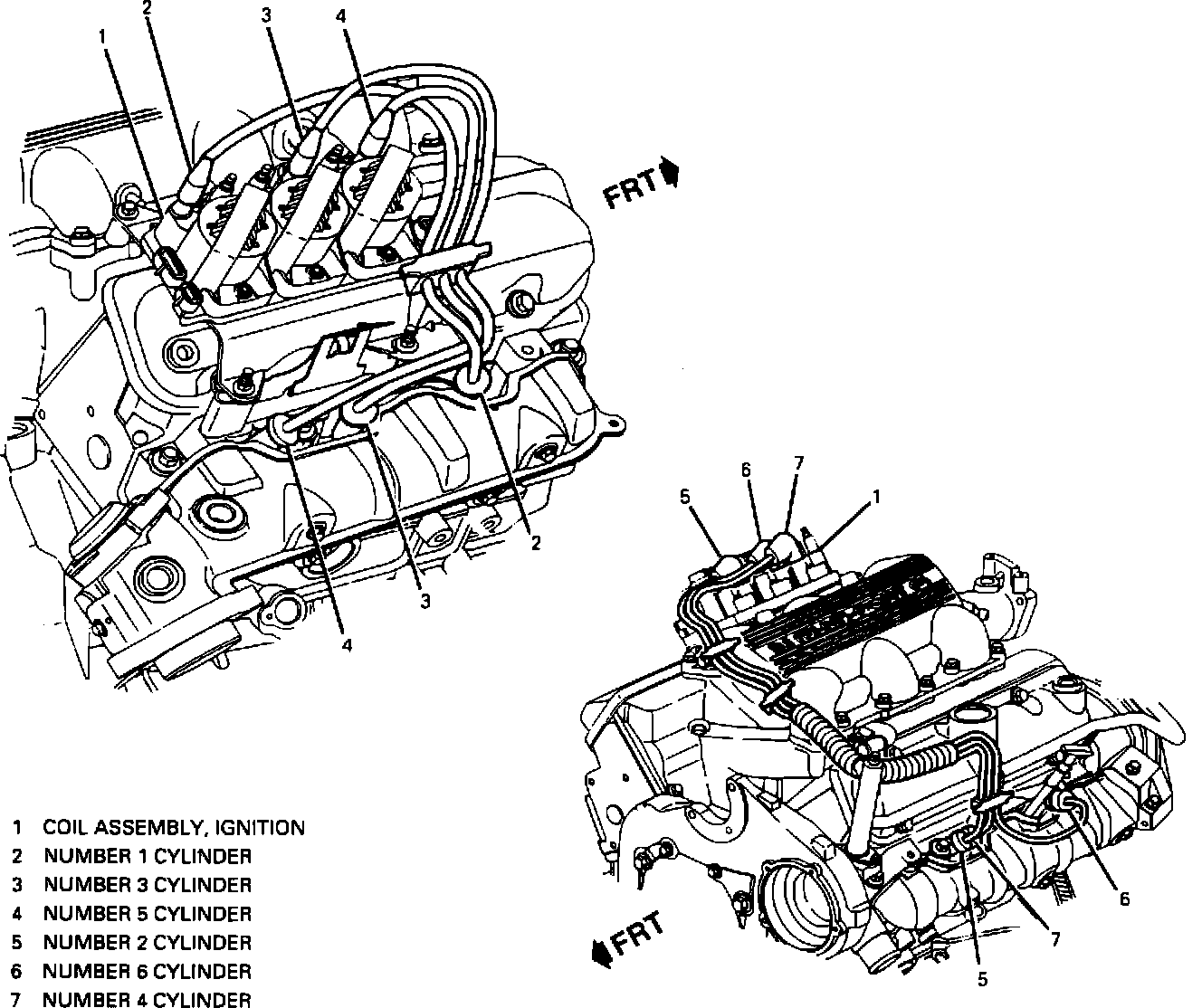

Ignition Cable: Service and Repair
REMOVE OR DISCONNECT 1.
Spark plug wires from plugs.
2.
Wires from module and engine.
CAUTION: Make sure that the
spark plug boot heat shields are installed.
INSTALL OR CONNECT 1.
Wires to module and engine.
2.
Spark to wires from plugs.
