Control Assembly Replace

HVAC Control Assembly:

REMOVE OR DISCONNECT

1. Instrument Panel (I/P) lower trim plates.

2. Air vent deflectors.

3. I/P accessory trim plate screws and trim plate.

4. Heating Ventilation and Air Conditioning (HVAC) control assembly screws.

5. HVAC control assembly from vehicle.

INSTALL OR CONNECT

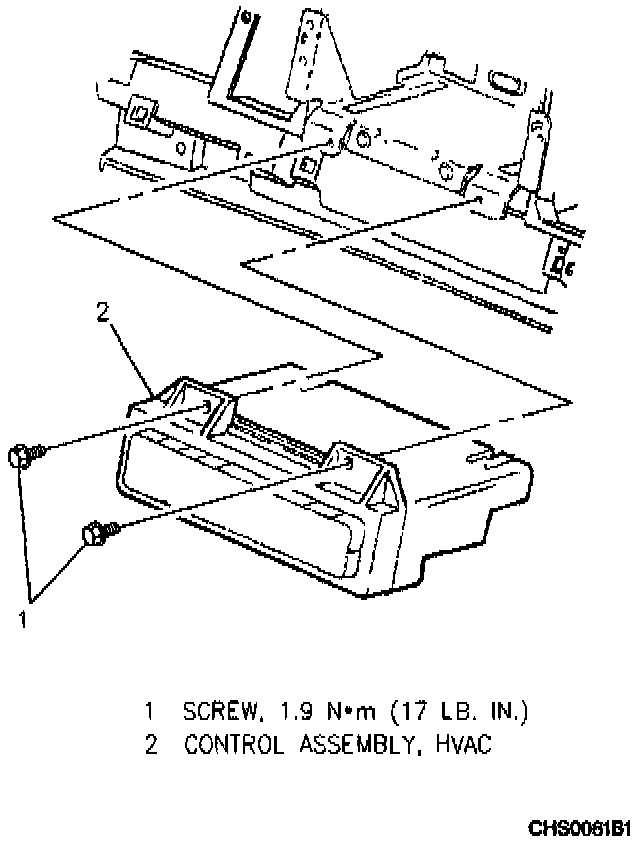

1. HVAC control assembly to the vehicle.

2. HVAC control assembly screws.

^ Tighten HVAC control assembly screws to 1.9 Nm (17 lb. in.).
3. I/P accessory trim plate and screws.

4. Air vent deflectors.

5. I/P lower trim plates.
