Control Assembly, HVAC

Heater And A/C Control:

REMOVE OR DISCONNECT

1. Instrument Panel (I/P) lower trim plates (snap out).

2. Air deflectors.

3. I/P accessory trim plate screws.

4. I/P accessory trim plate.

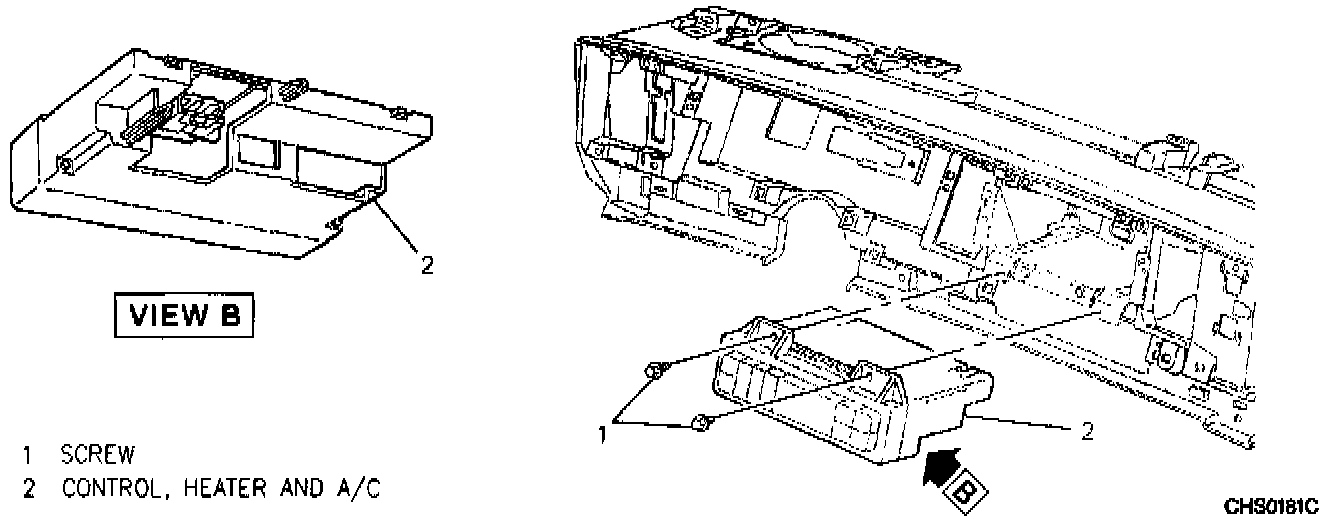

5. Heater and A/C control screws.

6. Heater and A/C control.

INSTALL OR CONNECT

1. Heater and A/C control.

2. Heater and A/C control retaining screws.

^ Tighten screws to 1.9 Nm (17 lb. in.).

3. I/P accessory trim plate.

4. Trim plate retaining screws.

^ Tighten screws to 1.9 Nm (17 lb. in.).

5. Air deflectors (snap in).

6. I/P lower trim plate (snap in).
