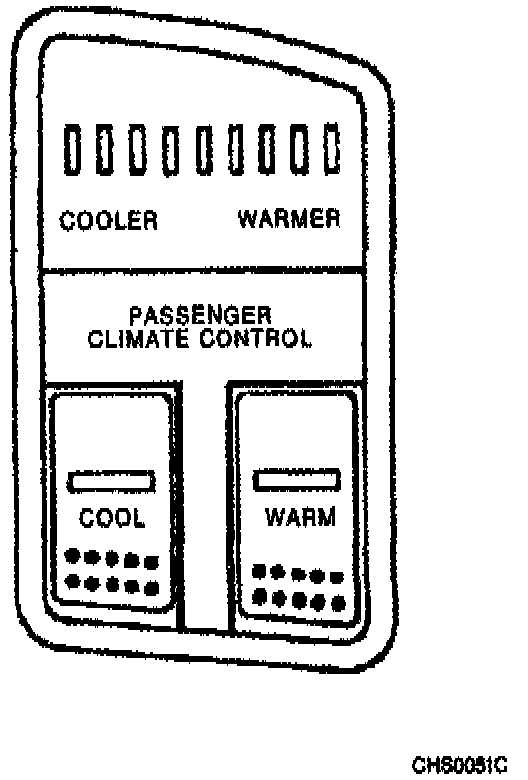

Passenger Control Assembly
Passenger Temperature Control:
REMOVE OR DISCONNECT 1.
Remove right door pad.
2.
Two retaining screws.
3.
Passenger climate control.
INSTALL OR CONNECT 1.
Passenger climate control to door pad.
2.
Two retaining screws.
-
Tighten screws to
1.9 Nm (17 lb. in.). 3.
Right door pad to door.
