Lamp Control Module - Service Procedure Revised

File In Section: 9 - Accessories

Bulletin No.: 43-90-19

Date: October, 1994

SERVICE MANUAL UPDATE

Subject:
Section 9C - Revised Lamp Control Module Service Procedure and Artwork

Models:
1995 Buick Park Avenue, LeSabre
1995 Oldsmobile Ninety Eight, Eighty Eight
1995 Pontiac Bonneville





Please replace "Twilight Sentinel: On Vehicle Service" "Lamp Control Module" and "Figure 4 - Lamp Control Module" found in the appropriate Service Manual with the following procedure and figure.

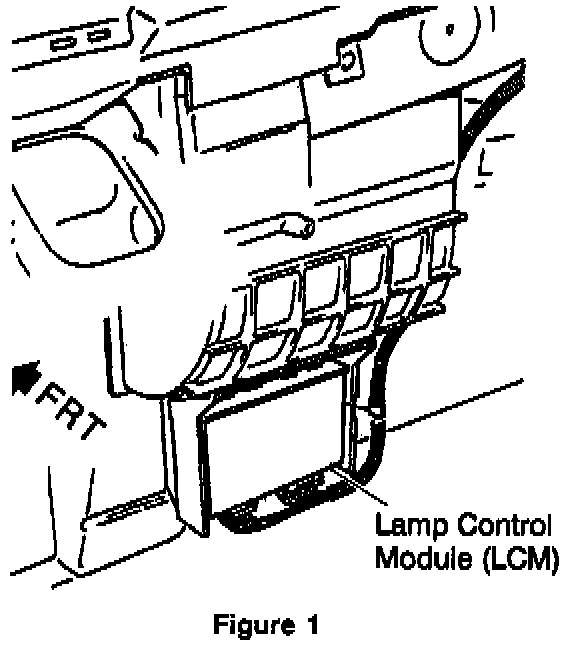

Lamp Control Module

Remove or Disconnect

1. Right sound insulator (Oldsmobile and Buick), left sound insulator (Pontiac).
2. Push in locking tab and slide lamp control module to the left.
3. Module from bracket.

^ It may be necessary to pull back the HVAC duct to have enough clearance to remove lamp control module.

4. Disconnect 2 electrical connectors.

Install or Connect

1. Two electrical connectors to module.
2. Lamp control module to bracket.

^ It may be necessary to pull back the HVAC duct to install module.

3. Sound insulator.
