SDM Module - Correct Location Illustration

File In Section: 8 - Chassis/Body Electrical

Bulletin No.: 43-81-49

Date: January, 1995

Subject:
Section 8A - Revised Illustration for Location of SDM Module

Models:
1995 Buick LeSabre, Park Avenue
1995 Oldsmobile Eighty Eight, Ninety Eight
1995 Pontiac Bonneville

This bulletin revises Page 8A-201-34 of the appropriate Service Manual.

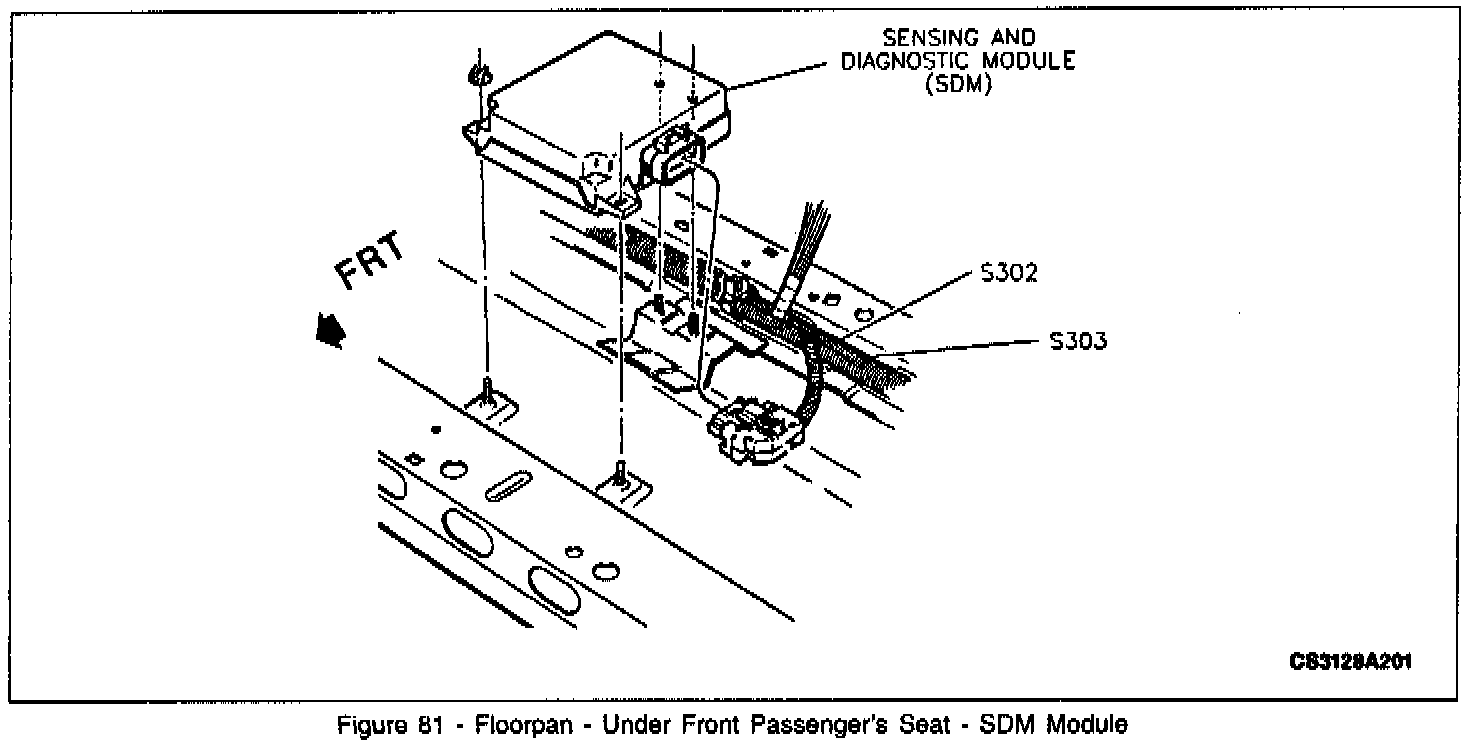

The illustration states the correct location of the SDM module, "Under Front Passenger's Seat".
