Accessory Signal: Service and Repair

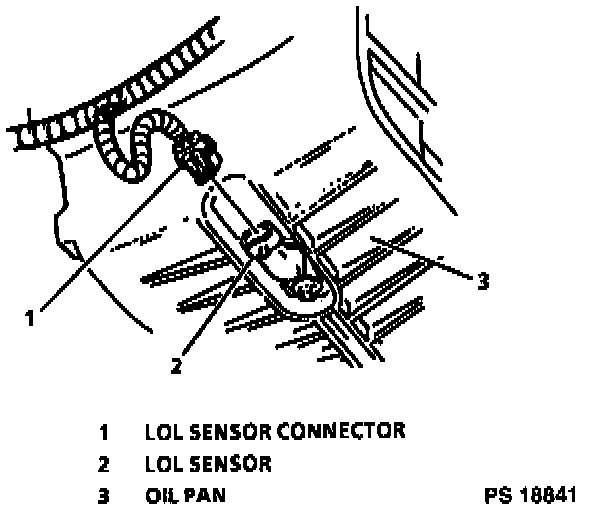

Engine Oil Level:
REMOVE 1.
Drain engine oil.
2.
Sensor electrical connector.
3.
Bolt / Screw.
4.
Oil level sensor / switch.
INSTALL 1.
Sensor into oil pan.
2.
Bolt / Screw and fasten securely.
3.
Sensor electrical connector.
4.
Oil drain plug.
5.
Fill engine with the proper quantity of clean oil.
6.
Run engine and check for leaks.
