Theft Deterrent Module Replacement

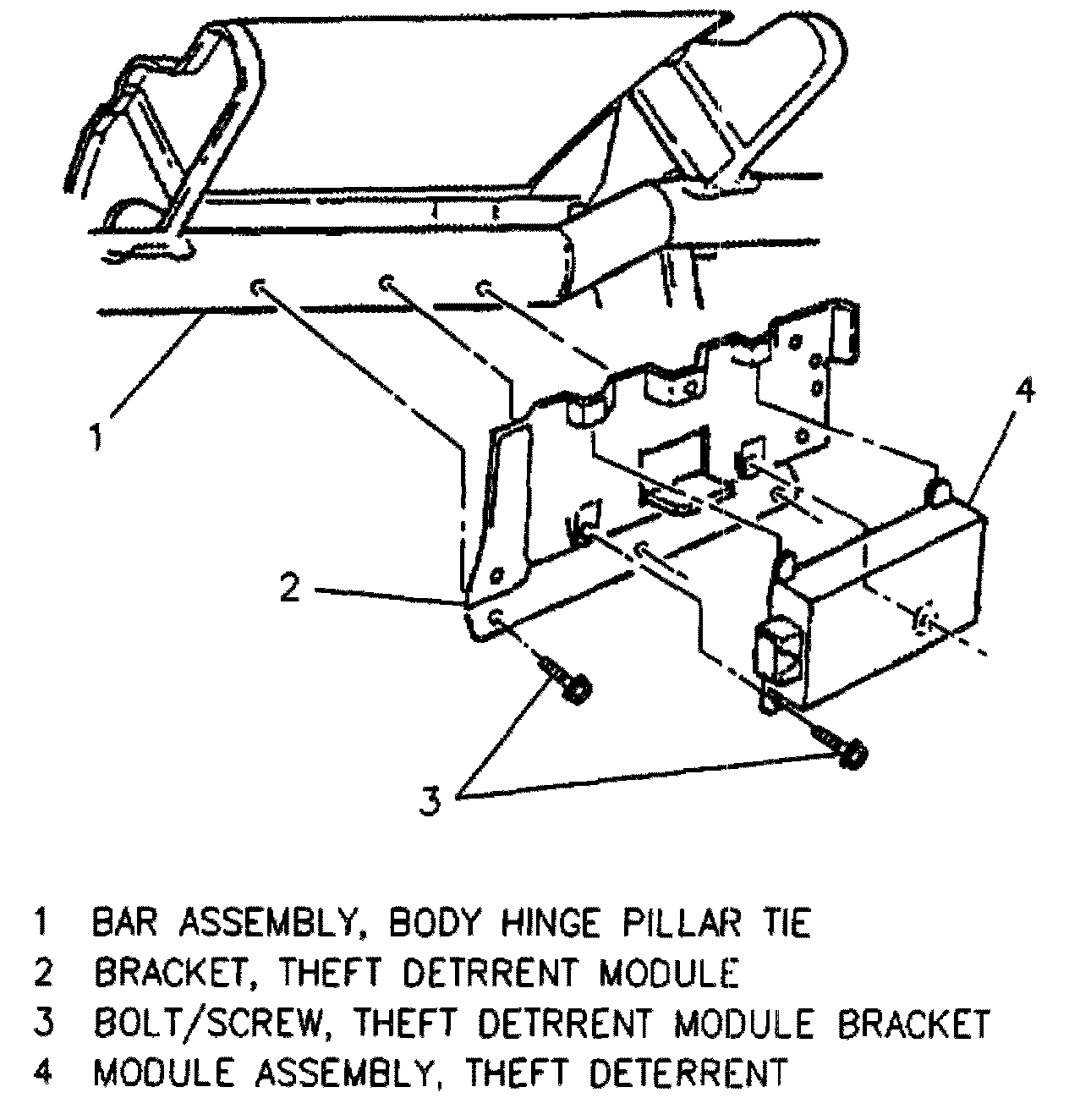

Theft Deterrent Module

Removal Procedures





1. Right-hand instrument panel sound insulator.
2. Instrument panel compartment.
3. Bolts/screws.
4. Bracket from cross car beam.
5. Bolts/screws.
6. Module from bracket.
7. Electrical connector.

Installation Procedure

1. Electrical connector.
2. Slide upper portion of module into bracket slots.
3. Bolts/screws.

Tighten
Tighten bolts/screws to 3 Nm (27 lb in).

4. Module and bracket to cross car beam.
5. Bolts/screws.

Tighten
Tighten bolts/screws to 3 Nm (27 lb in).

6. Instrument panel compartment.
7. Right-hand instrument panel sound insulator.
