Trim Panel

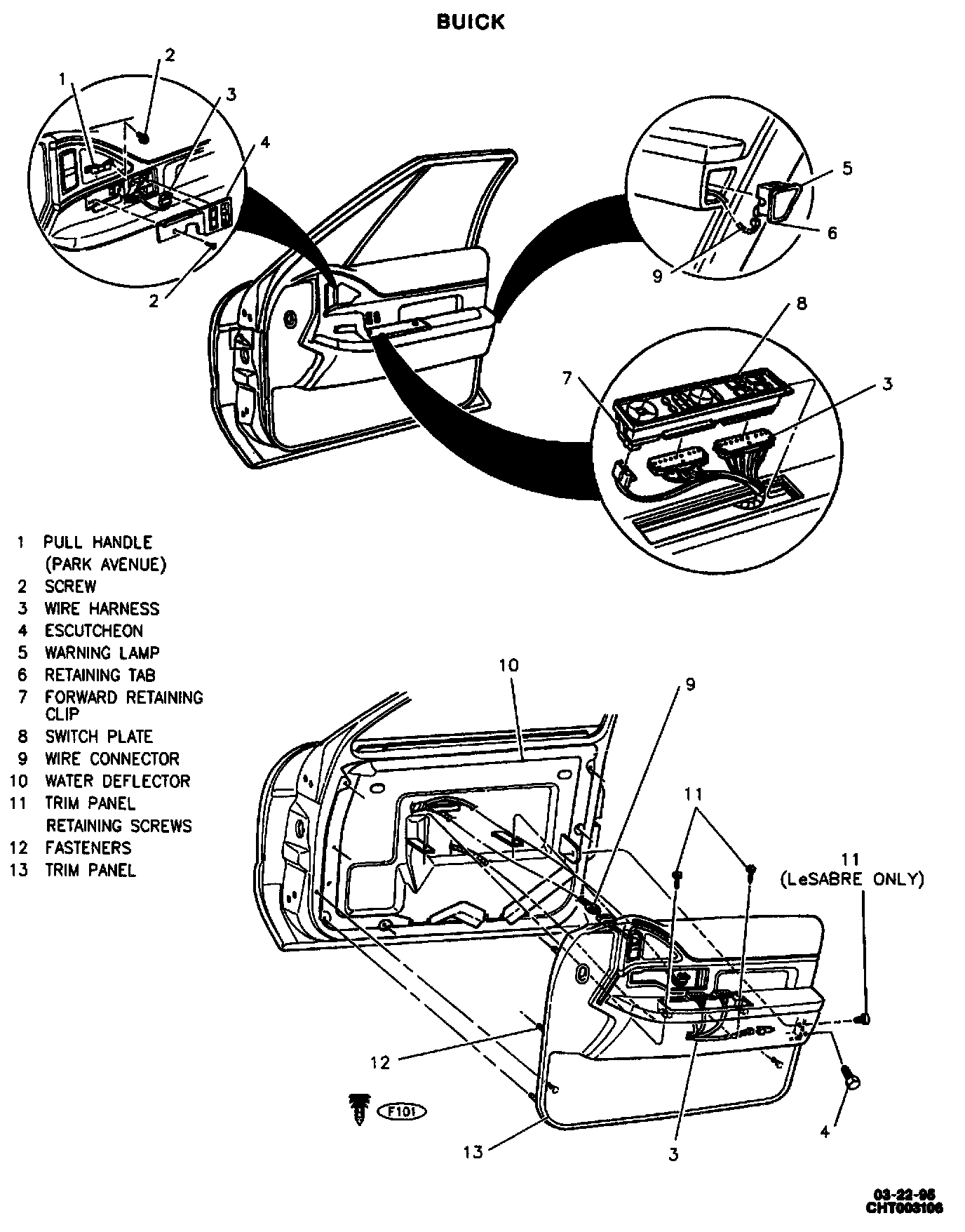

Front Door Trim Panel (1 of 2):

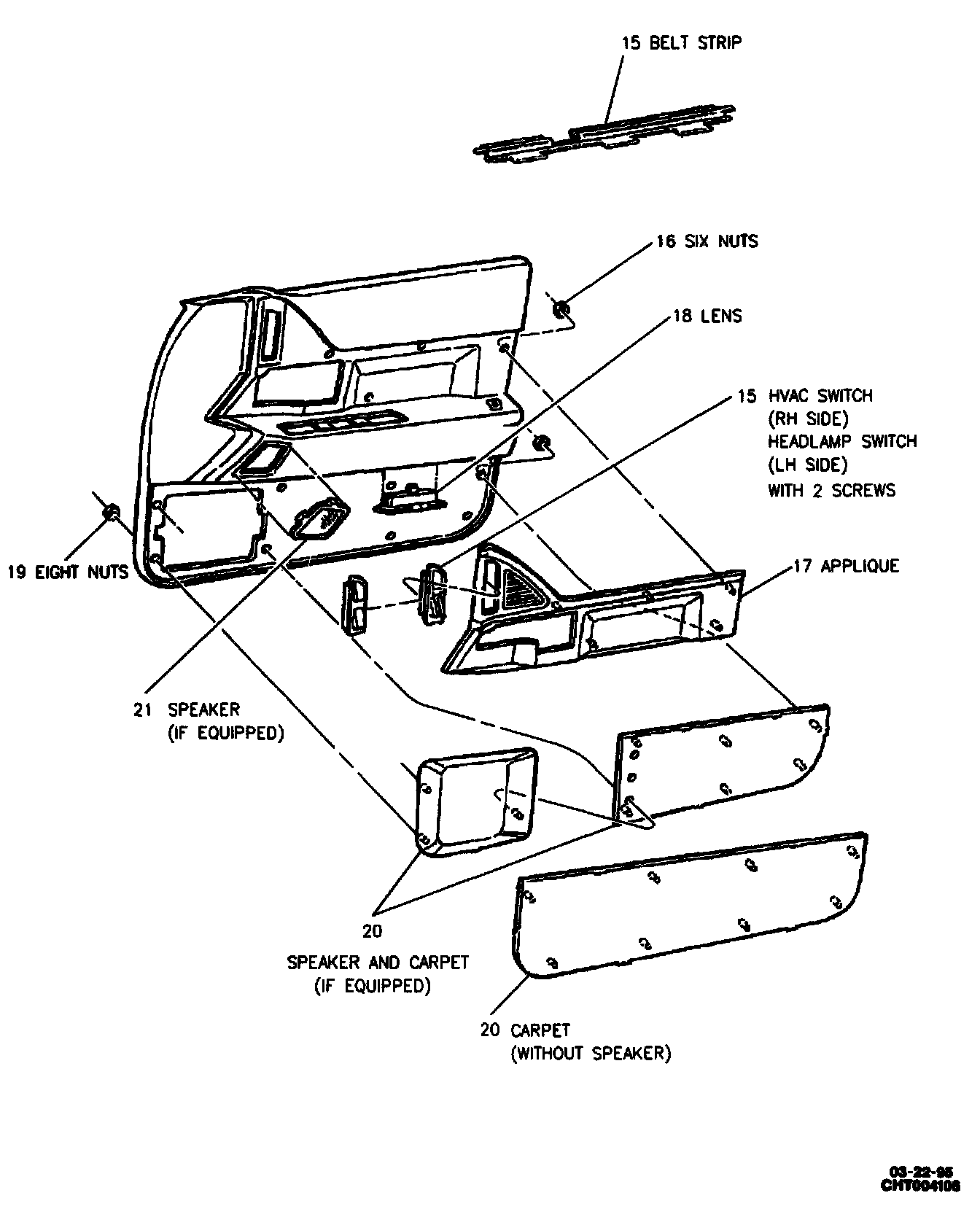

Front Door Trim Panel (2 of 2):






Remove or Disconnect

1. Switch plate.
2. Wire harness.
3. Insert small thin-bladed tool between side of warning lamp/reflector and armrest base to release retaining tab.
4. Wire connector.
5. Escutcheon screw.
6. Wire harness.
7. Lock control lever and escutcheon.
8. Screws and pull handle (Park Avenue).
9. Retaning screws.
10. Trim panel fasteners.
11. Feed wire harness through door.
12. Trim panel.
13. Wire connector and speaker (if equipped).
14. Screws from HVAC (RH side) or headlamp switch (LH side) then remove from applique.
15. Applique nuts and applique.
16. Courtesy lamp lens.
17. Carpet nuts and carpet.
18. Speaker cover.

Install or Connect

1. Speaker cover.
2. Carpet.
3. Courtesy lamp lens.
4. Applique.
5. HVAC control (RH side) or headlamp switch (LH side) then remove from applique.
6. Speaker and wire connector.
7. Feed wire harness through door.
8. Trim panel.
9. Retaining screws.
10. Pull handle.
11. Escutcheon and lock control lever.
12. Wire harness.
13. Warning lamp/reflector.
14. Wire harness and switch plate.
