Interior Lighting Module: Service and Repair

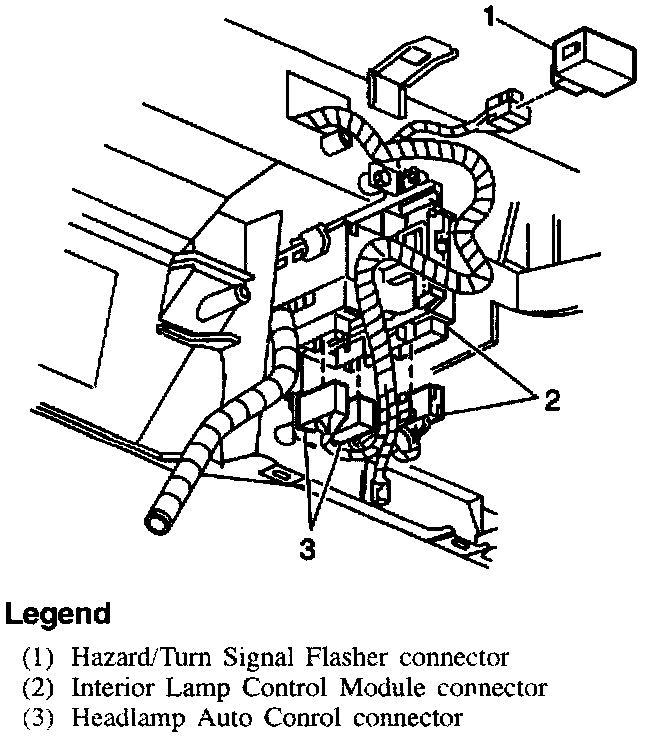

Description:

Remove or Disconnect
1. Left sound insulator.
2. Controller connector.
3. Lower retainer bracket from module bracket.
4. Squeeze prongs together to release.
^ Pull down on module to remove from mounting bracket.
5. Controller from bracket.

Install or Connect
1. Controller to bracket.
^ Slide module upward and slightly rearward into bracket until locking tabs engage.
2. Lower retainer bracket to module bracket, center prongs engage into module bracket center area.
3. Electrical connections.
4. Left sound insulator.
