Power Window Control Module: Service and Repair

Door Module, Front:

Remove or Disconnect

1. Trim panel and water deflector. Service and Repair

Bracket, Front Door Trim Panel:

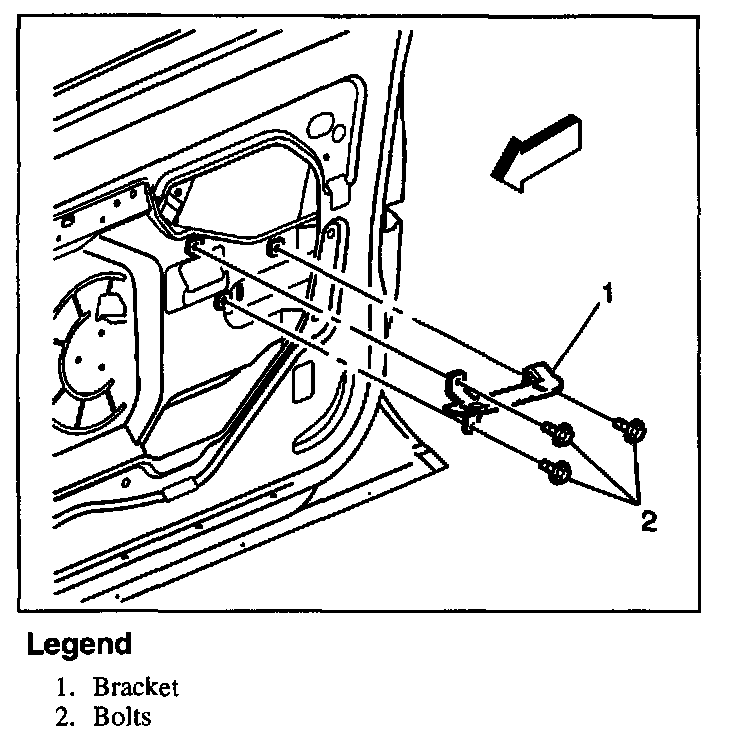

2. Trim panel bracket.
3. Speaker assembly.
4. Inner and outer belt moldings.
5. Window.
6. Lock rods from outside door handle.
7. Three screws form door latch assembly.
8. Three upper bolts from module.
9. Loosen three lower captive bolts.

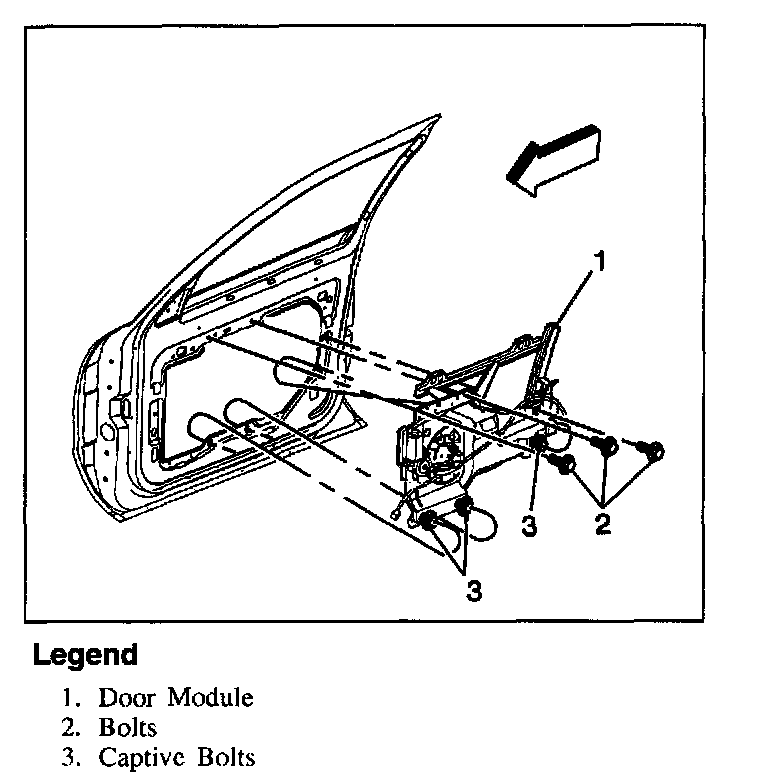

10. Module.

Install or Connect

1. Module.
2. Three upper bolts.
3. Tighten all six bolts.

Tighten
^ Attach bolts to 10 N.m (89 lb. in.).

4. Three screws to latch assembly.
5. Lock rods to outside handle.
6. Window.
7. Inner and outer belt moldings.
8. Speaker assembly.
9. Trim panel bracket.
10. Water deflector and trim panel.
