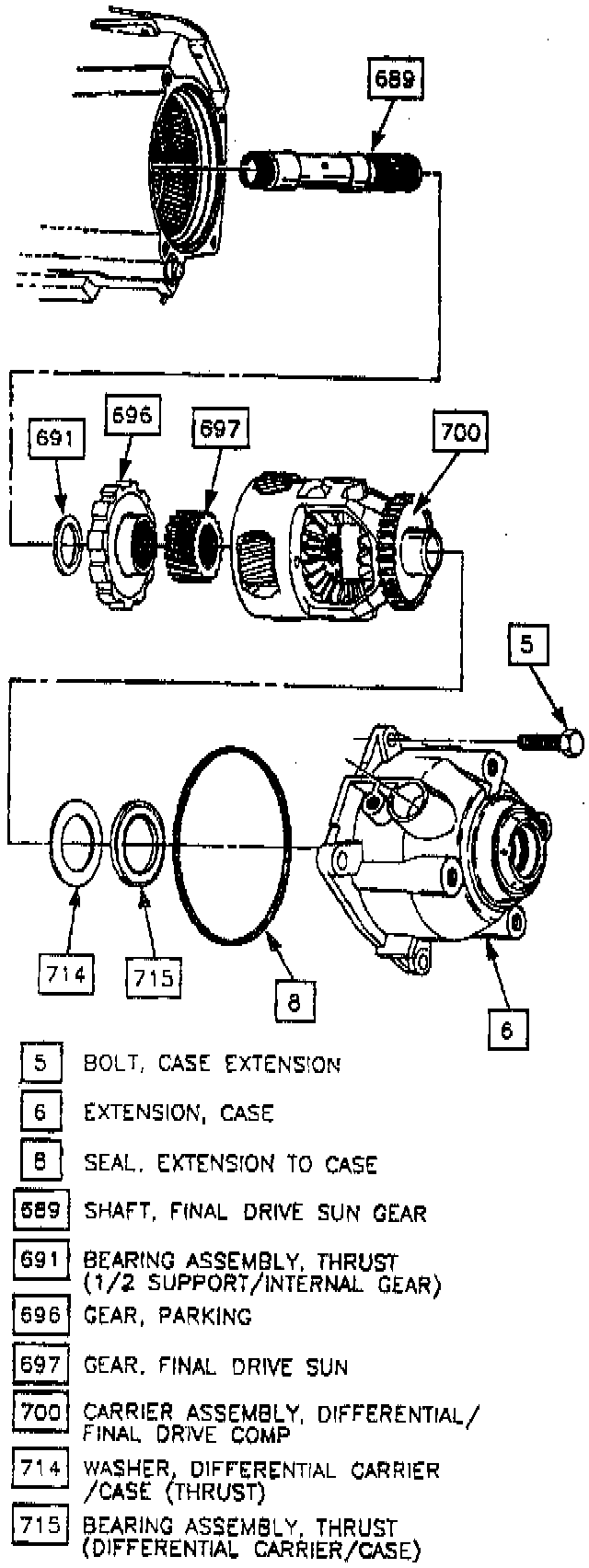

Extension Housing: Service and Repair

REMOVE OR DISCONNECT
1. Transaxle brace.
2. Vehicle speed sensor.
3. Case extension housing bolts/screws.
4. Case extension housing with O-ring and axle seal.

INSTALL OR CONNECT

NOTICE: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and the joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.

1. Case extension housing with axle seal and O-ring.
2. Case extension housing bolts/screws.
- Tighten bolts/screws to 36 Nm (27 ft. lbs.).
3. Vehicle speed sensor.
4. Transaxle brace.

Adjust
- Fluid level.

NOTICE: Do not overfill transaxle. Overfilling causes foaming and loss of fluid through the vent and may damage the automatic transaxle.

Inspect
- For proper completion of repairs.
- For proper fluid level.
- For fluid leaks. Refer to "FLUID LEAK DIAGNOSIS."
